The stunning midrange drivers, tonally precise tweeters and a superior crossover network come together to form an audiophile-quality component set perfect for demanding listeners.

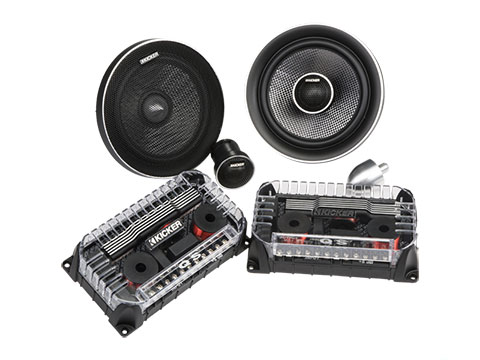

QS Series 6.75″ Components
QS 6-3/4 Inch Separates are a matched component system, built for pure sonic reproduction.
Producing realism in a performance is your passion. The QS Series crossovers allow you to use a single amplifier channel, or use bi-amplification for even more flexibility and control.
These QS separates work best with 100 watts of recommended power. See below for more details.
Specifications
| Woofer (in., mm) |
| 6-3/4, 165 |
| Tweeter (in., mm) |
| 1-3/16, 30 |
| Tweeter dome material |
| Tetoron® |
| Rated Impedance [Ω] |
| 4 |
| Recommended Amplifier Power (watts RMS) |
| 100 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 200 |
| Sensitivity [1W, 1m] |
| 87dB |
| Frequency Response [Hz] |
| 40-22k |
| Woofer Mounting Hole Diameter [in, mm] |
| 5-7/16, 138 |
| Woofer Bottom Mount Depth [in, mm] |
| 2-1/2, 63.5 |
| Flush Mount Tweeter Hole Diameter [in,mm] |
| 1-13/16, 46 |
| Flush Mount Tweeter Depth [in,mm] |
| 1-1/8, 29 |
| High Pass [dB], at Frequency [Hz] |
| 24, 2800 |
| Low Pass [dB], at Frequency [Hz] |
| 12, 2800 |
| High Frequency Output Attenuation [dB] |
| 0, +3, +6 |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of THREE (3) YEARS from date of original purchase. – Complete warranty information here. |
