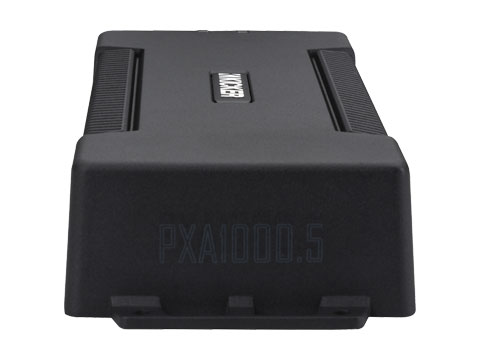

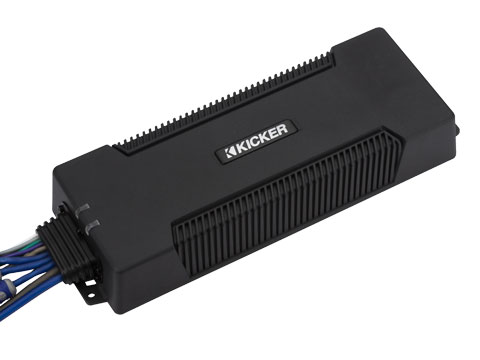

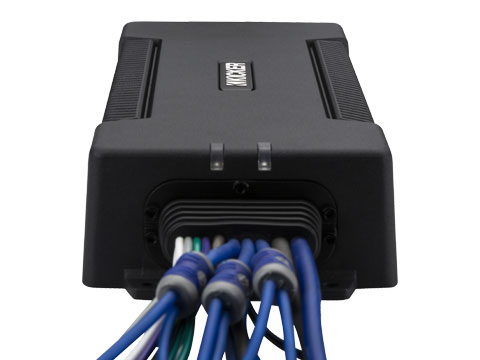

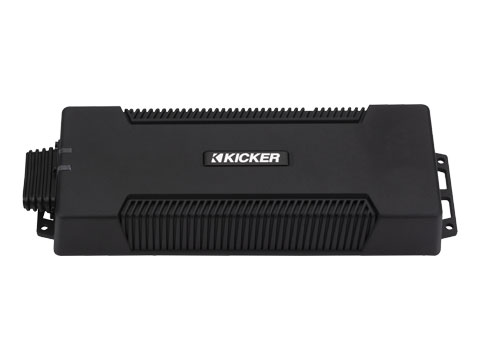

Completely re-engineered, the PXA1000.5 is a single-amp solution to an entire system! It supplies big full-range power, in a compact, waterproof design for the trickiest installs.
Class-Leading Power
-
- Waterproof amplifier design with IP66 and IP67 certifications
- Ideal for UTVs, off-road vehicles, hot rods or space-challenged vehicles
- High-efficiency Class-D technology
- Huge full-range power from a small footprint – rated at 1400 watts Dynamic Power!**
- Includes subwoofer channel stable at one-Ohm
- Dual turn-on modes (choice of DC offset or 12v trigger)
- Includes inline power and ground couplers that need no soldering or crimping
- Stainless-steel mounting hardware included
Specifications
| Power (watts/ch), 1 Ohm Mono: |
| 600 x 1 |
| Power (watts/ch), 2 Ohm Mono: |
| 500 x 1 |
| Power (watts/ch), 4 Ohm Mono: |
| (amp 1&2) 200 x 2; (sub) 300 x 1 |
| Power (watts/ch), 2 Ohm Stereo: |
| 100 x 4 |
| Power (watts/ch), 4 Ohm Stereo: |
| 100 x 4 |
| **Dynamic Power (watts): |
| 1400 |
| Frequency Response (Hz, +0/-3dB): |
| (FR) 10-20k; (sub) 25-200 |
| Crossovers: |
| 24dB/octave hi-pass 80/120Hz (amp1 and amp2); lo-pass 60/80/100/120Hz (sub only) Subsonic – 25Hz, 24dB/octave (sub only) |
| Bass Boost: |
| selectable 0/+6dB, centered at 40Hz (sub channel only) |
| Dimensions (in, mm): |
| W: 4-1/2, 114.7 |
| H: 1-15/16, 50 |
| L: 12-7/8, 327.5 |
| CXARC Remote capable (sold separately): |
| Yes (sub channel only) |
| What’s in the Box: |
| Waterproof IP66/IP67 power sports amplifier 2 DC power couplers Stainless-steel mounting hardware Customer information Card |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of TWO (2) YEARS from date of original purchase. – Complete warranty information here. |
*RMS Power test @ 14.4v @ _ 1% THD+N, Audio Precision analyzer, see www.kicker.com/amp-power-testing for details.
**Dynamic Power test @ 14.4v @ _ 10% THD+N, Audio Precision APx500 analyzer, see www.kicker.com/amp-power-testing for details.
