The only thing thin about the L7T thin subwoofer is the mounting depth. These tough subs work perfectly in nearly anything with a motor.

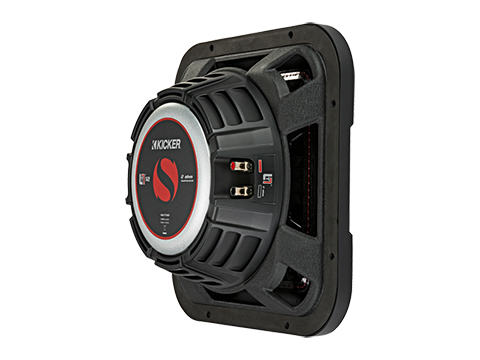

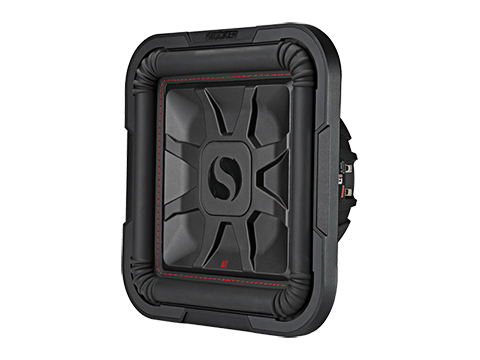

12″ L7T 2 Ohm
The L7T 12-inch Subwoofer is a true-bass, thin subwoofer with a pair of 2Ω voice coils.
Thin-mount and mean, the Solo-Baric® L7T square subwoofer delivers more bass than a round driver, giving you up to 20% more cone area than a round sub while fitting where only a thin driver will do. Match any L7T thin sub with a KX-Series mono amplifier for an outstanding combination of power and size.
Features:
- Uses a Sealed or Ported Enclosure
- Square Sub Design Moves 20% More Air Than Round Subwoofers
- Easily Mounts Under or Behind a Seat
- Dual Voice Coil Design
- Ribbed Santoprene Surround Resists Heat And Degrading
- Bumped Top Plate For More Excursion & Smoother Performance
- SoloKon™ Cone With 360-Degree Back Bracing
- UniPlate™ Solid Pole Piece & Backplate For Excellent Heat Dissipation
- Durable Steel Basket
Want setup help? Go to KICKERU for a free woofer & amplifier configuration app!
*The L7T 12-inch Subwoofer works best with a sealed or ported enclosure and 600 watts of recommended power. See below for more details.
Specifications
| Thiele/Small Parameters |
| 46L7T122 T/S Parameters |
| Size (IN.,CM) |
| 12, 30 |
| Impedance (OHMS) |
| 2 DVC |
| Recommended Amplifier Power (watts RMS) |
| 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 1200 |
| Sensitivity (dB 1w/1m) |
| 86.54 |
| Frequency Response (Hz) |
| 25-100 |
| Mounting Depth (IN.,CM) |
| 4-1/8, 9.5 |
| Mounting Cutout, Square (IN.,CM) |
| 11-1/16, 28.1 |
| Min Rec Sealed Box Volume (CU. FT., Liters) |
| .55, 15.6 |
| Max Rec Sealed Box Volume (CU. FT., Liters) |
| 1.25, 35.4 |
| Min Rec Vented Box Volume (CU. Ft., Liters)** |
| 1.75, 49.6 |
| Max Rec Vented Box Volume (CU. Ft., Liters)** |
| 2.25, 63.7 |
| What’s in the box? |
| one 12-inch subwoofer, one owner’s manual, two stickers |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. – Complete warranty information here. |
