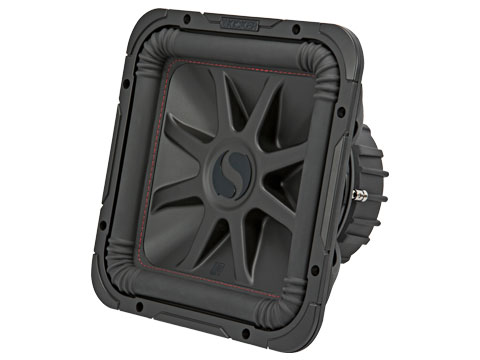

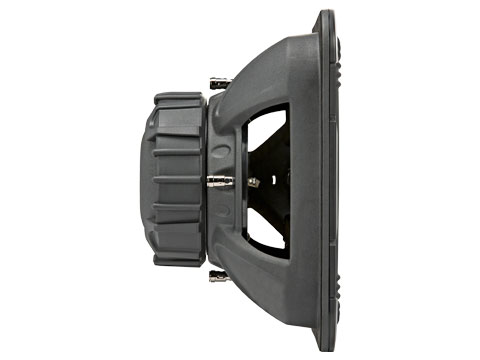

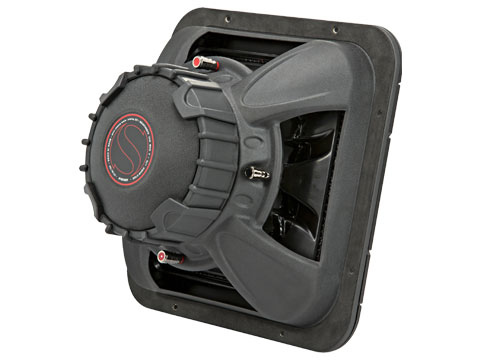

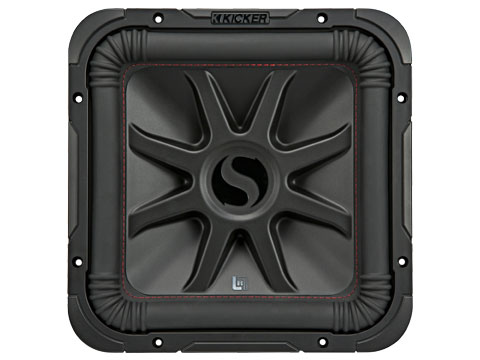

The 12-inch L7R Square Sub moves more air and delivers bigger bass, so you get more bump out of every watt!
The Original
Originator, n. (əˈrijəˌnādər): see KICKER
The engineers at KICKER invented the original square sub right here in Stillwater, Oklahaoma. Designed to give you more bass, yet take up no more air space than a standard round sub. Welcome to the incredible world of the L7R!
- Dual Four-Ohm Voice Coil
- Wrap Around Gasketing
- Patented Ribbed Corners
- Injection-Molded SoloKon™ Woofer
- 360-Degree Back Bracing
- UniPlate™ Back Plate And Pole Piece
- Bumped Back Plate
- Thick Tinsel Leads
- Large Ceramic Magnet
- Steel Basket With Spoke Design
- Nickel Plated Speaker Terminals
The L7R 12-Inch Subwoofer works best with 600 watts of recommended power in a sealed or ported enclosure. See below for more details.
Specifications
| Thiele/Small Parameters |
| 45L7R124 T/S Parameters |
| SIZE [in, cm]: |
| 12, 30 |
| IMPEDANCE [Ohms]: |
| 4 DVC |
| Recommended Amplifier Power (watts RMS) |
| 600 |
| Peak Power (watts, per ANSI/CTA-2031-A) |
| 1200 |
| SENSITIVITY [dB 1w/1m]: |
| 86.7 |
| MOUNTING DEPTH [in, cm]: |
| 6-7/8, 17.4 |
| MOUNTING DIAMETER [in, cm]: |
| 11-1/16, 28.1 |
| MIN SEALED BOX VOL [cu. ft, L]: |
| .88, 24.92 |
| MAX SEALED BOX VOL [cu. ft, L]: |
| 2, 56.64 |
| MIN VENTED BOX VOL [cu. ft, L]: |
| 1.75, 49.6 |
| MAX VENTED BOX VOL [cu. ft, L]: |
| 3.25, 92 |
| What’s in the Box: |
| 1 – 12″ Subwoofer, 1 – install manual, 2 – Kicker stickers |
| Warranty |
| When purchased from an Authorized KICKER Dealer or kicker.com, KICKER warrants this product to be free from defects in material and workmanship under normal use for a period of ONE (1) YEARS from date of original purchase. – Complete warranty information here. |
