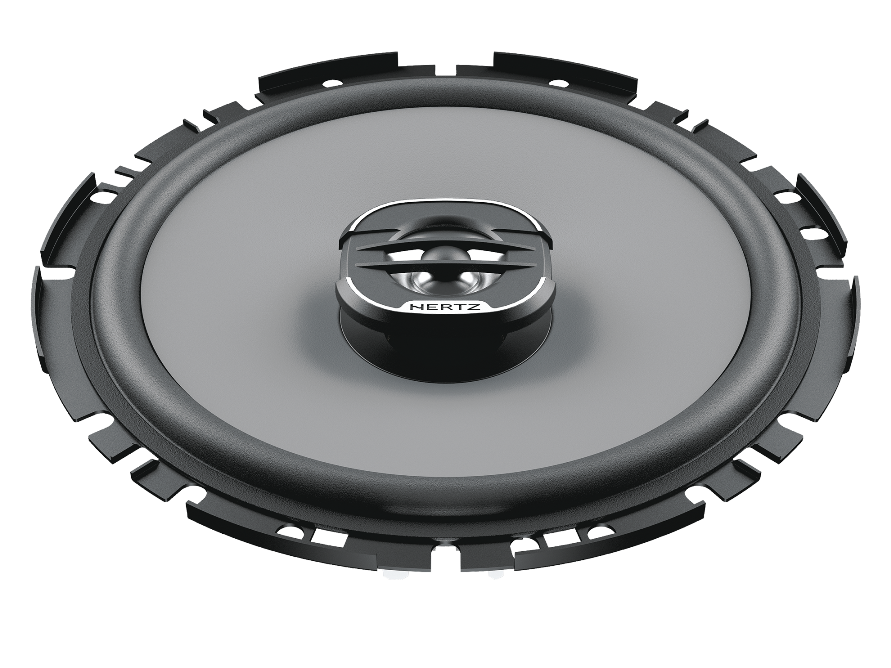

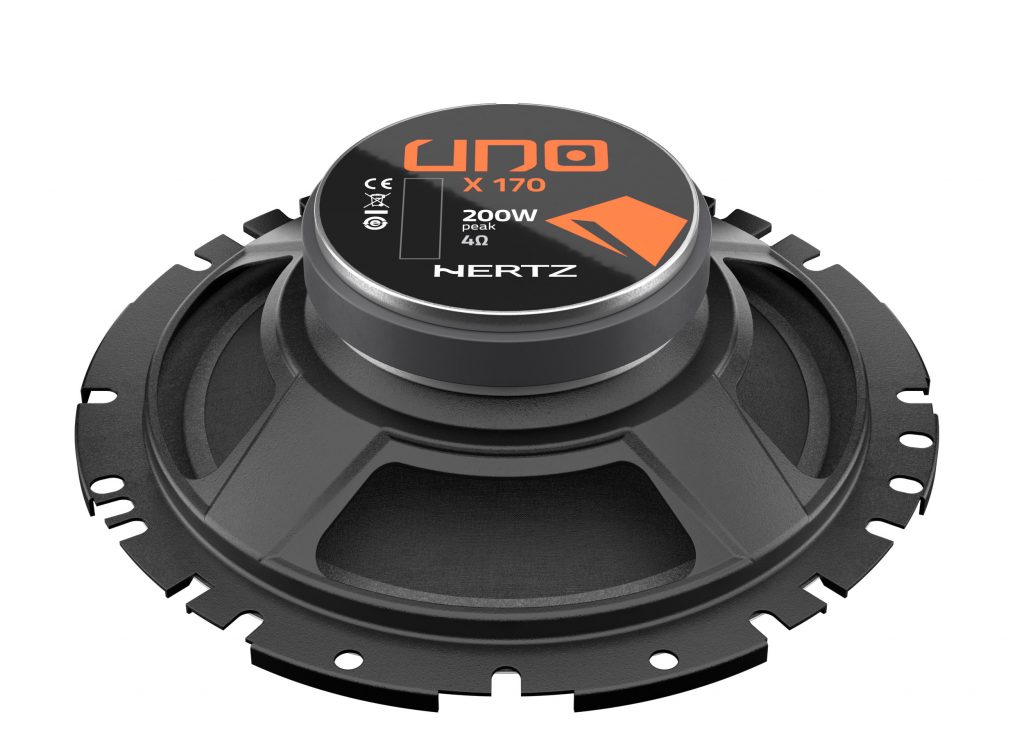

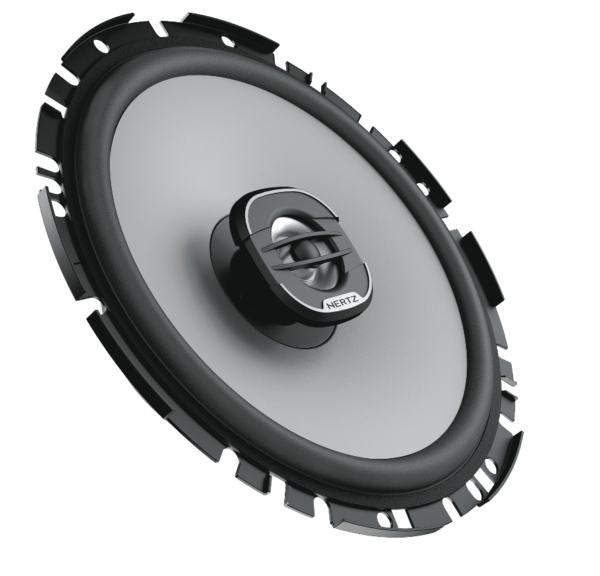

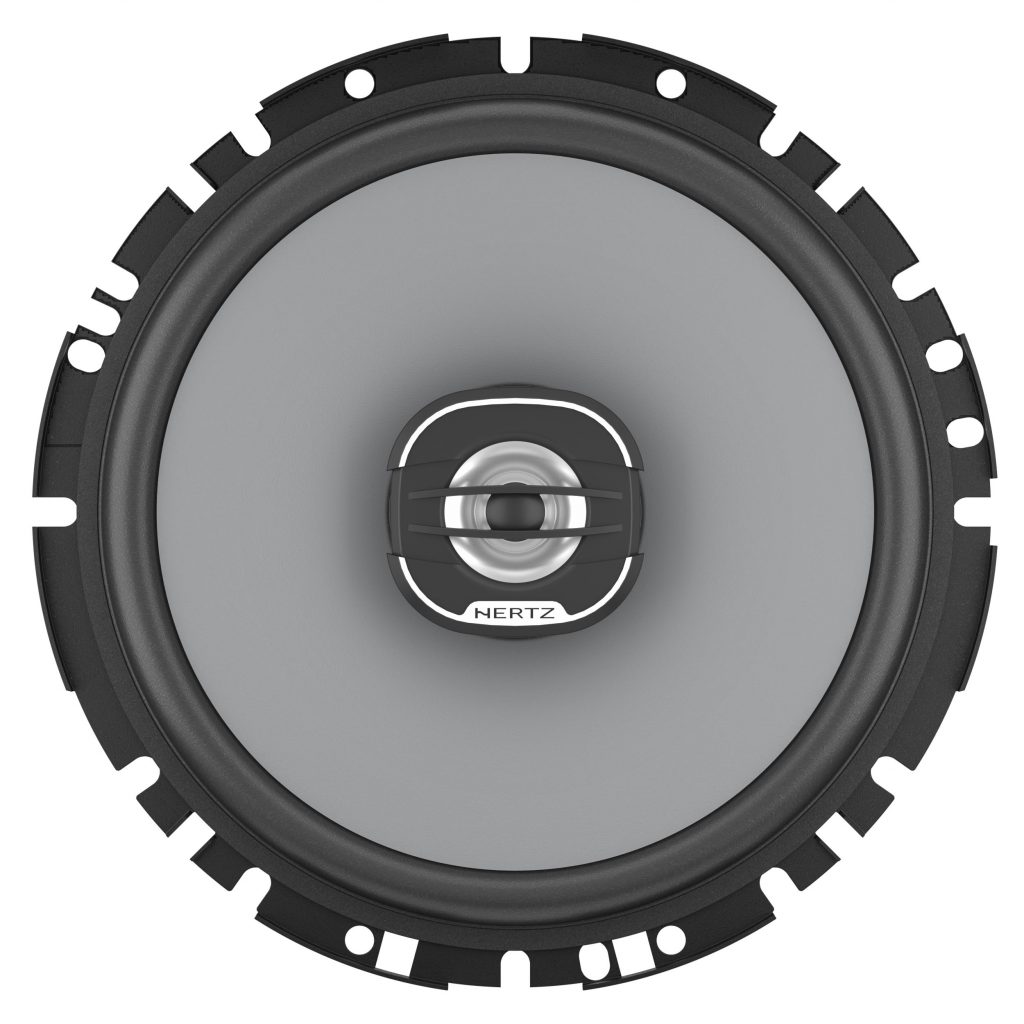

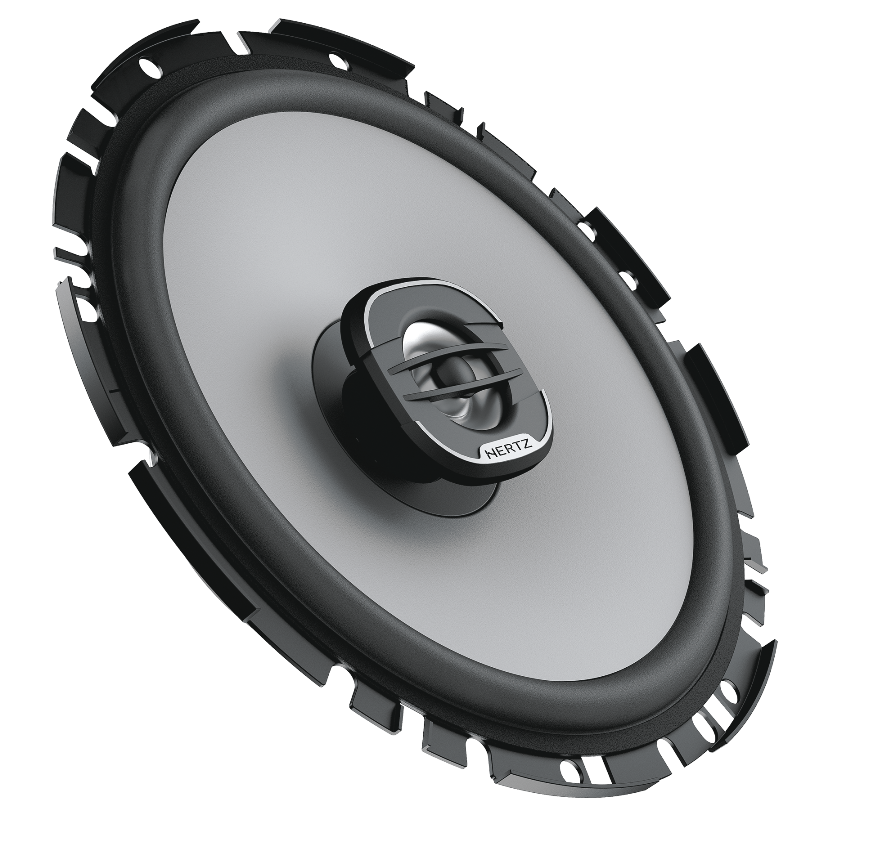

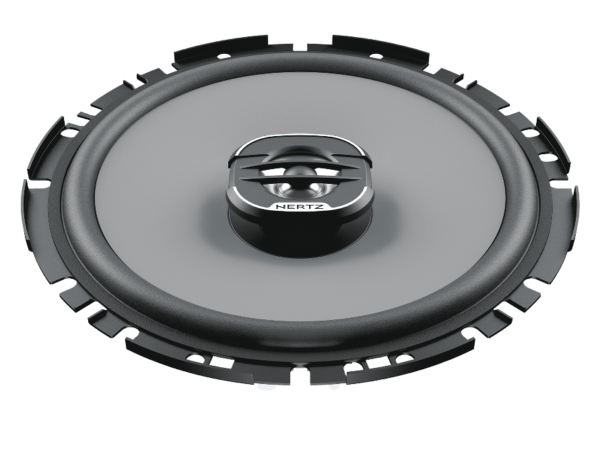

The 6.7” two-way coaxial X 170 features a special designed tweeter faceplate optimized for exceptional off-axis performance to ensure a linear frequency response when installed in a factory replacement setup. The pressed-paper cone treated with water-repellent along with the foam surround provide a very high SPL and extended low frequency response, to obtain a rich sound even when driven by the OEM head unit. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The easy-to-install DIN size basket, protected by an abrasion-resistant dust paint, makes the factory speakers replacement a snap.
| Component | Coaxial |
| Size mm (in.) | 170 (6.7) |
| Power Handling – Continuous W | 50 |
| Power Handling – Peak W | 200 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 24 (0.9) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 14 (0.55) |
| Frequency Response Hz | 60 ÷ 21k |
| Woofer Magnet size D x d x h mm (in.) | 80 x 32 x 10 (3.15 x 1.26 x 0.39) |
| Weight of one speaker kg (lb.) | 0,56 (1.23) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Water-repellent pressed paper |
| Dome | PEI |
| Xmech mm (in.) | ±3 (0.12) |
Physical Specs
| A | 165 mm | 6.5 in. |
| B | 140 mm | 5.51 in. |
| C | 51 mm | 2.01 in. |
| D | 45 mm | 1.77 in. |
