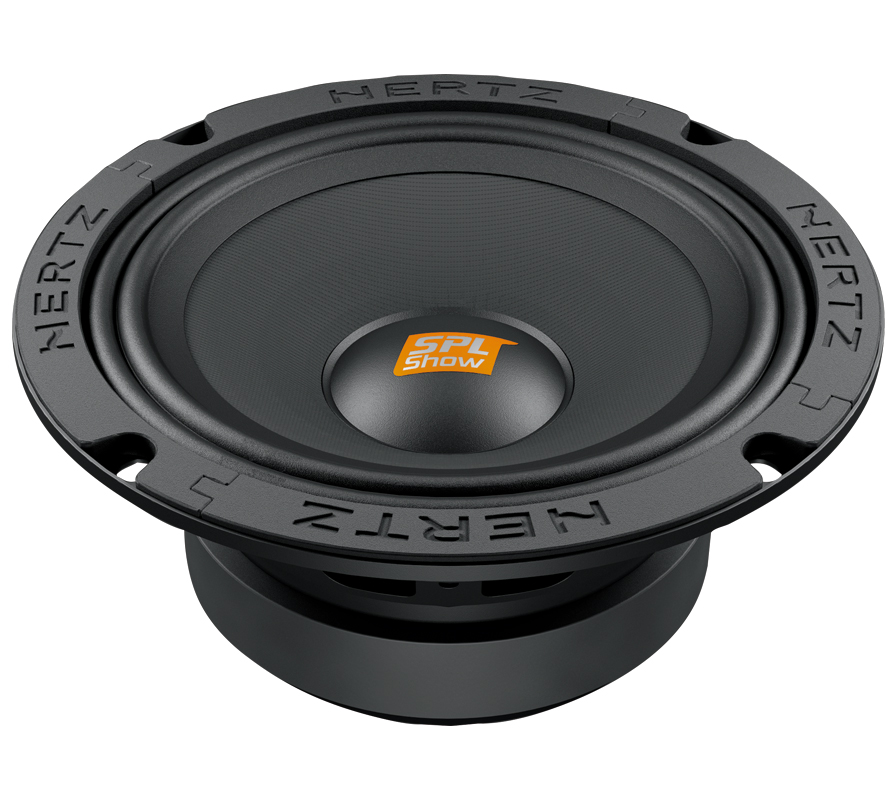

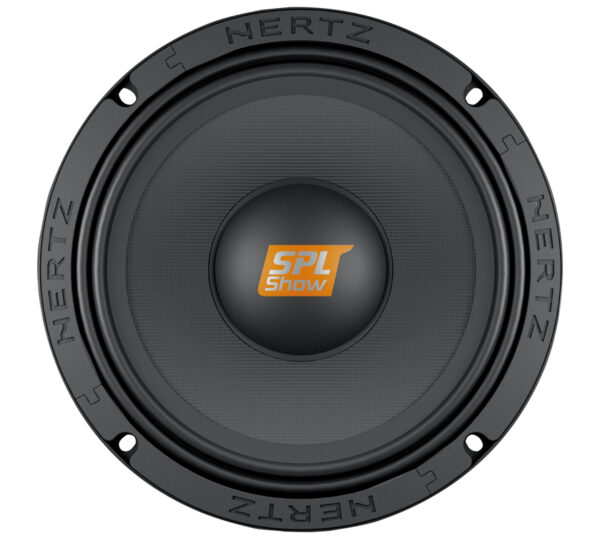

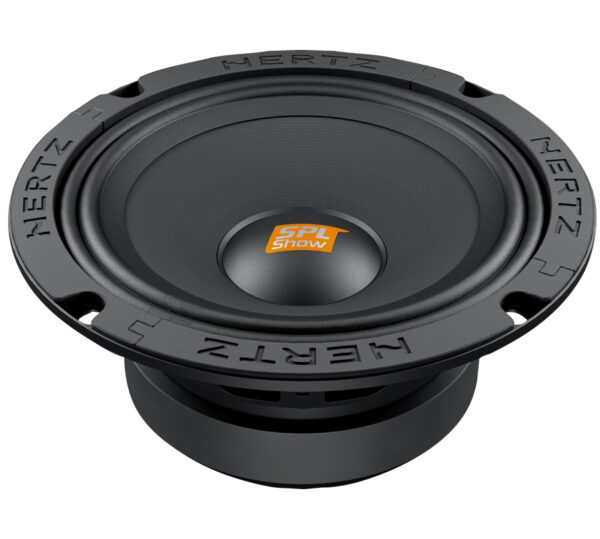

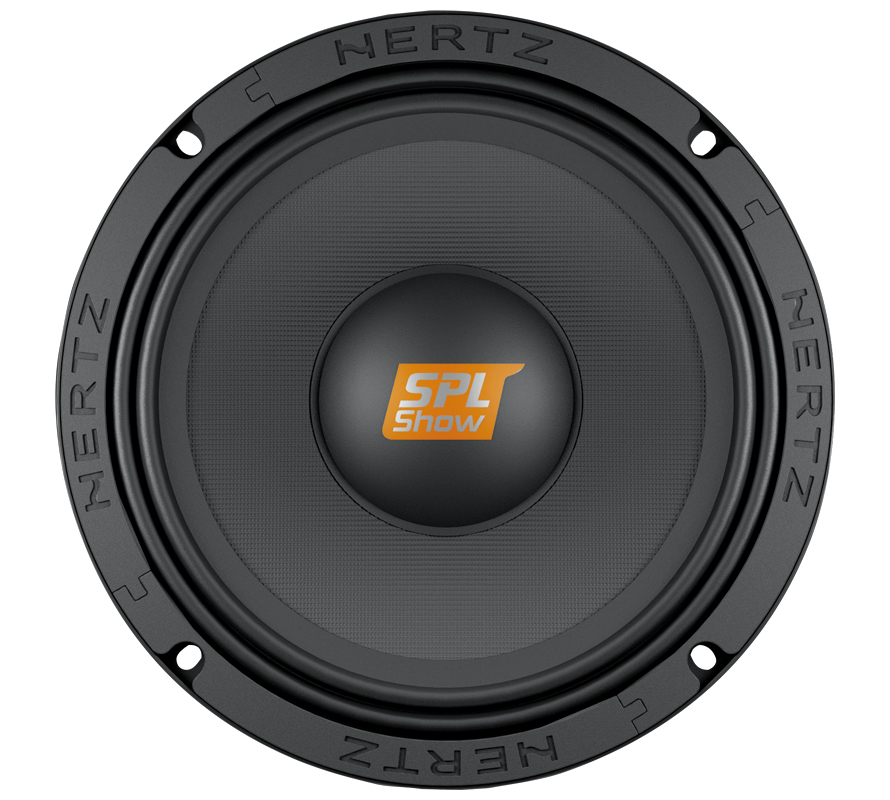

The SV 165.1 car audio midrange can be employed to build systems with tremendous impact. Like the SX subwoofers, the SV 165.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
| Component | SPL Midrange |
| Size mm (in.) | 165 (6.5) |
| Power Handling – Continuous W | 150 |
| Power Handling – Peak W | 400 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 38 (1.5) |
| Frequency Response Hz | 100 ÷ 10k |
| Magnet size D x d x h mm (in.) | 110 x 45 x 20 (4.3 x 1.8 x 0.8) |
| Weight of one speaker kg (lb.) | 1,85 (4) |
| Magnet | High density flux ferrite |
| Cone | Ultra-light pressed paper |
| D mm | 128 |
| Re Ohm | 3,2 |
| Fs Hz | 110 |
| Le MH | 0,26 |
| Vas I | 4,65 |
| Mms g | 10,4 |
| CMS mm/N | 0,2 |
| BL T*m | 6,5 |
| Qts | 0,5 |
| Qes | 0,55 |
| Qms | 5,53 |
| Spl dB | 97 |
Physical Specs
| A | 168 mm | 6.6 in. |
| B | 145 mm | 5.7 in. |
| C | 74 mm | 2.9 in. |
| D | 66 mm | 2.6 in. |
Frequency response
