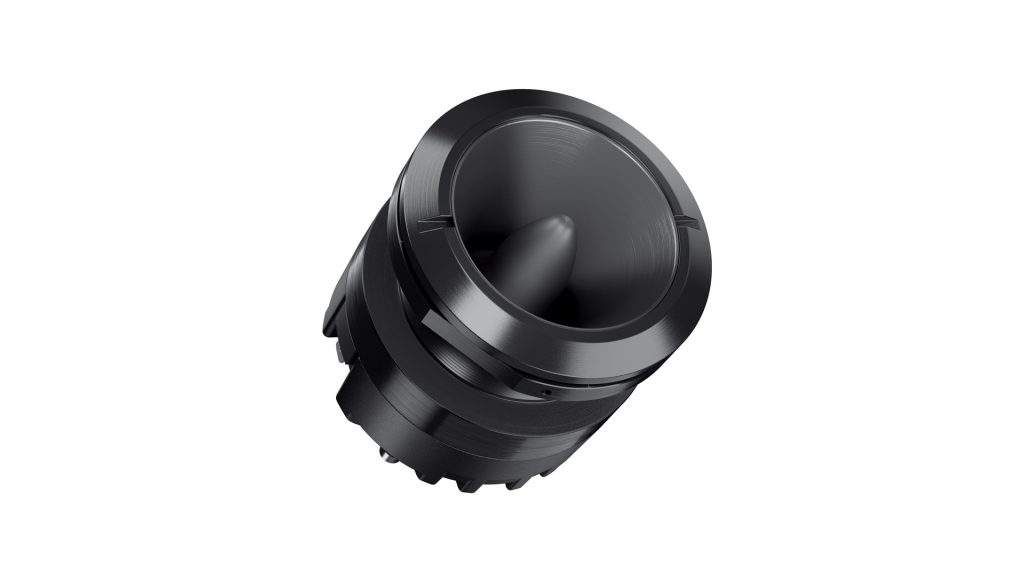

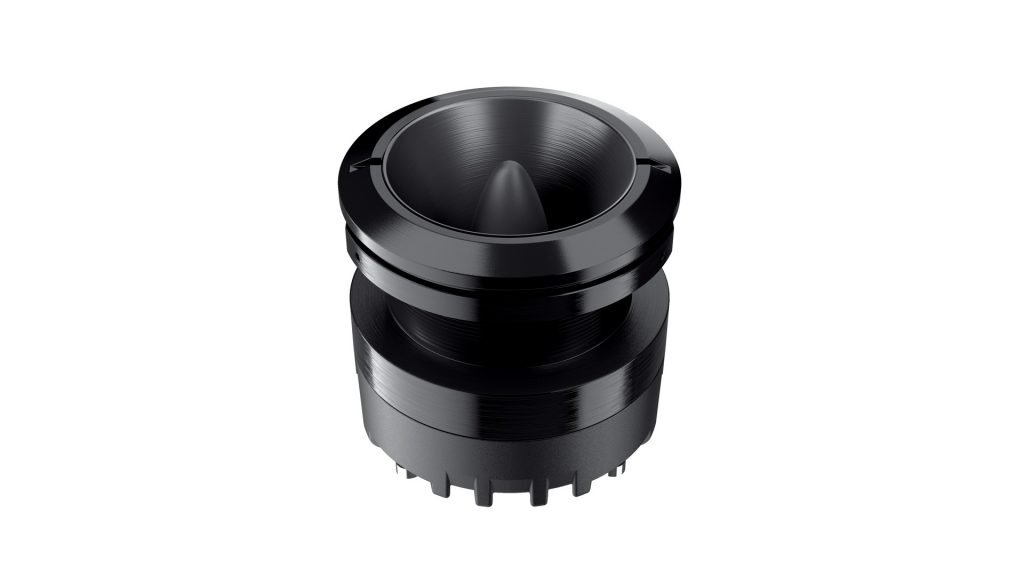

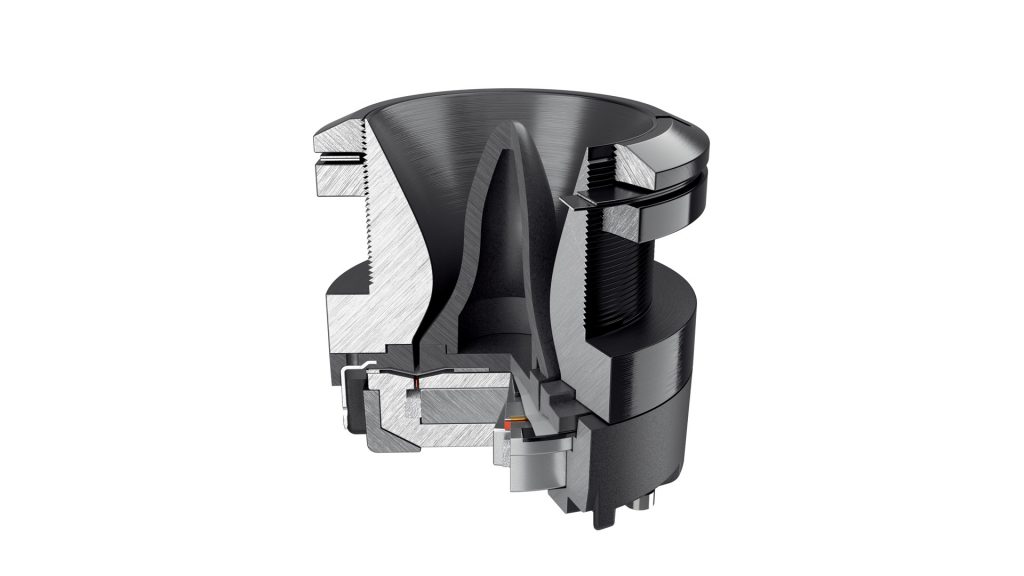

NEO line bullet tweeters are a totally new project, lighter and more compact compared to the previous ST 35 and with superior performance thanks to the use of Neodymium N38 H for the motor units and a FEM (Finite Element Method) optimized driver/horn design. The “Active” version, ST 35A Neo provides tweeter only.
| Component | HIGH EFFICIENCY COMPRESSION DRIVER |
| Size mm (in.) | 46 (1.8) |
| Power Handling – Peak W | 120 |
| Power Handling – Peak Note | Hi-pass filtered @ 5 kHz – 12 dB Oct. |
| Impedance Ohm | 4 |
| Voice Coil Ø | 35 (1.4) |
| Frequency Response Hz | 2k ÷ 20k |
| Weight of one component kg (lb.) | 0,53 (1.17) |
| Magnet | Neodymium |
| Dome | Aluminium |
| D mm | 46 |
| Re Ohm | 3,3 |
| Fs Hz | 4000 |
| Le mH | 0,02 |
| BL T*m | 3,5 |
| Spl dB | 109 |
Physical Specs
| A | 69 mm | 2.72 in. |
| B | 52 mm | 2.05 in. |
| C | 65,7 mm | 2.59 in. |
| D | 33,3 mm | 1.31 in. |
Frequency response
