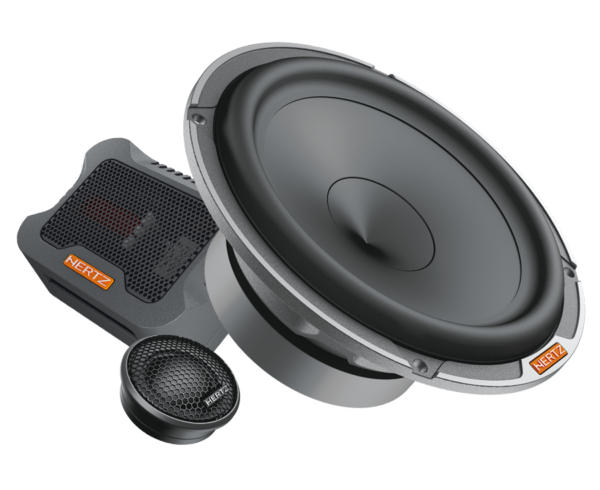

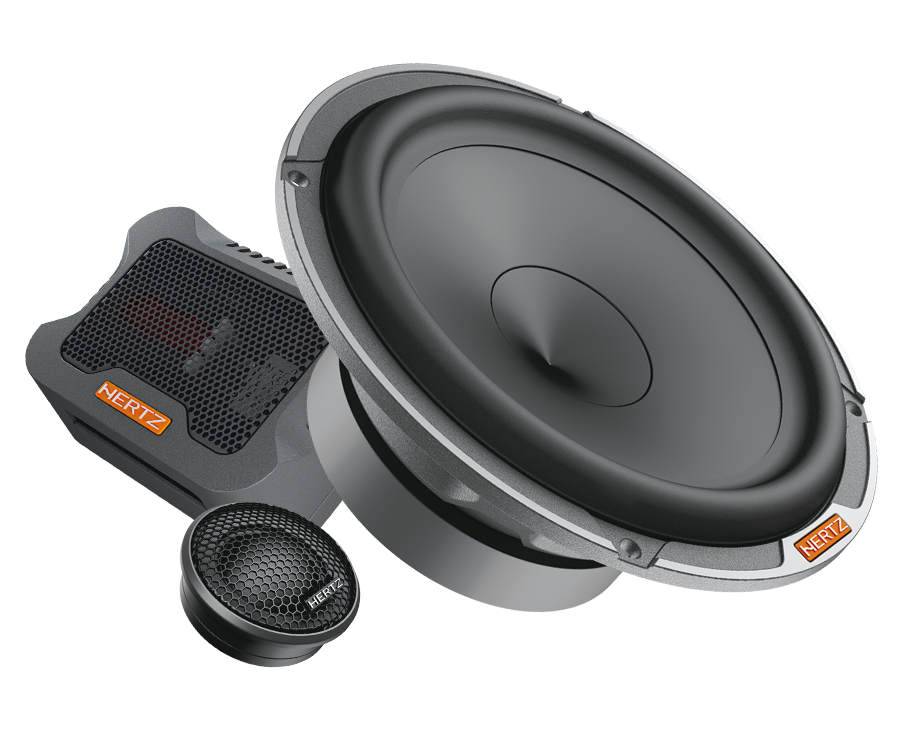

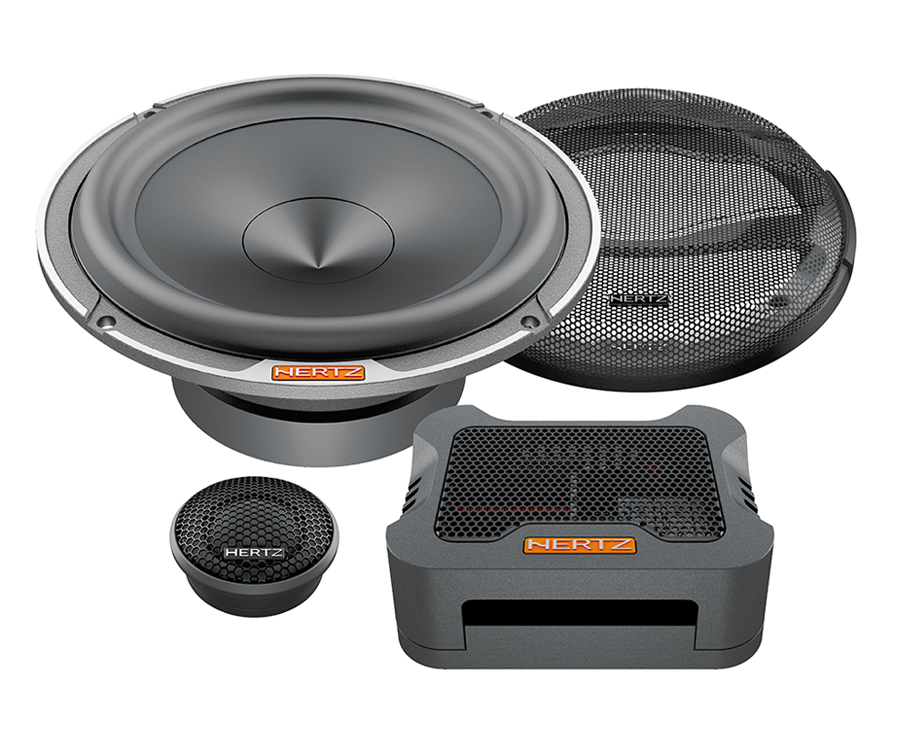

The MPK 165P.3 car audio speakers system energy in the mid-low range ensures a unique listening experience, creating the ideal set up alongside a powerful subwoofer section. The MP 165P.3 woofer electroacoustic parameters have been forged to give it the pure and solid sound of an authentic mid-bass, designed for high dynamic systems. The MPK 165P.3 timbre balance is entrusted to the MPCX 2P.3 crossover featuring a copper inductor with a 1 mm diameter wire to filter the MP 165P.3, which, with its nominal 3 Ω requires high impulse currents. The tweeter MP 25.3 12dB/Octave crossover is built with extremely high quality 160V bi-metallized polyester film capacitor and an air coil inductor. The tweeter (MP 25.3) level control (0/+2.5dB) provides the ability to adapt the system response to the listener preferences and considering the components installation position.
| Component |
System |
| Size mm (in.) |
165 (6.5) |
| Power Handling – Continuous W |
115 |
| Power Handling – Peak W |
230 |
| Impedance Ohm |
3 |
| Tweeter diaphragm mm (in.) |
29 (1.14) |
| Woofer Voice Coil Ø mm (in.) |
25 (1) |
| Tweeter Voice Coil Ø mm (in.) |
25 (1) |
| Sensitivity dB SPL |
93 |
| Frequency Response Hz |
45 ÷ 22,5k |
| Crossover Cut off |
4 kHz. |
| Crossover Type |
2 Way Passive Crossover |
| Weight of one component – Woofer |
1.20 (2.65) |
| Weight of one component – Tweeter kg (lb) |
0.07 (0.15) |
| Weight of one component – Crossover kg (lb) |
0.17 (0.37) |
Technical Specs
| D mm |
132 |
| Re Ohm |
2,6 |
| Fs Hz |
75 |
| Le MH |
0,28 |
| Vas I |
8 |
| Mms g |
15,1 |
| CMS mm/N |
0,3 |
| BL T*m |
5,45 |
| Qts |
0,56 |
| Qes |
0,63 |
| Qms |
5,2 |
| Spl dB |
94 |
Electro-acoustic Specs
