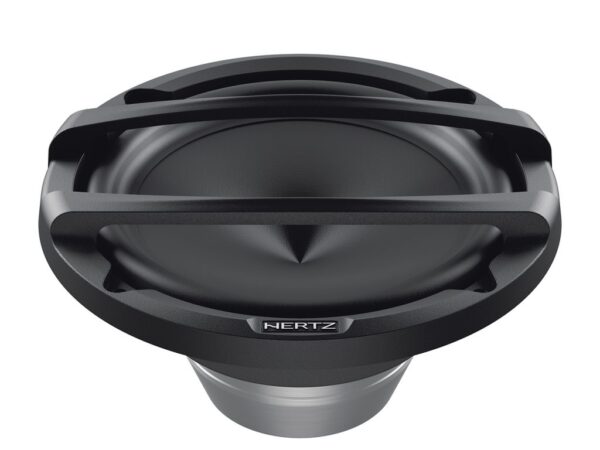

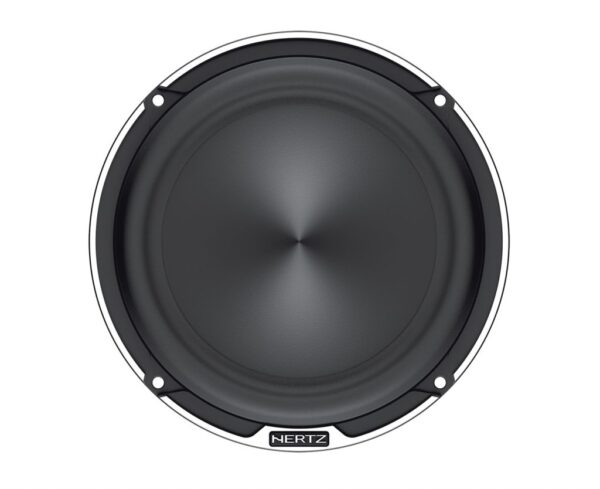

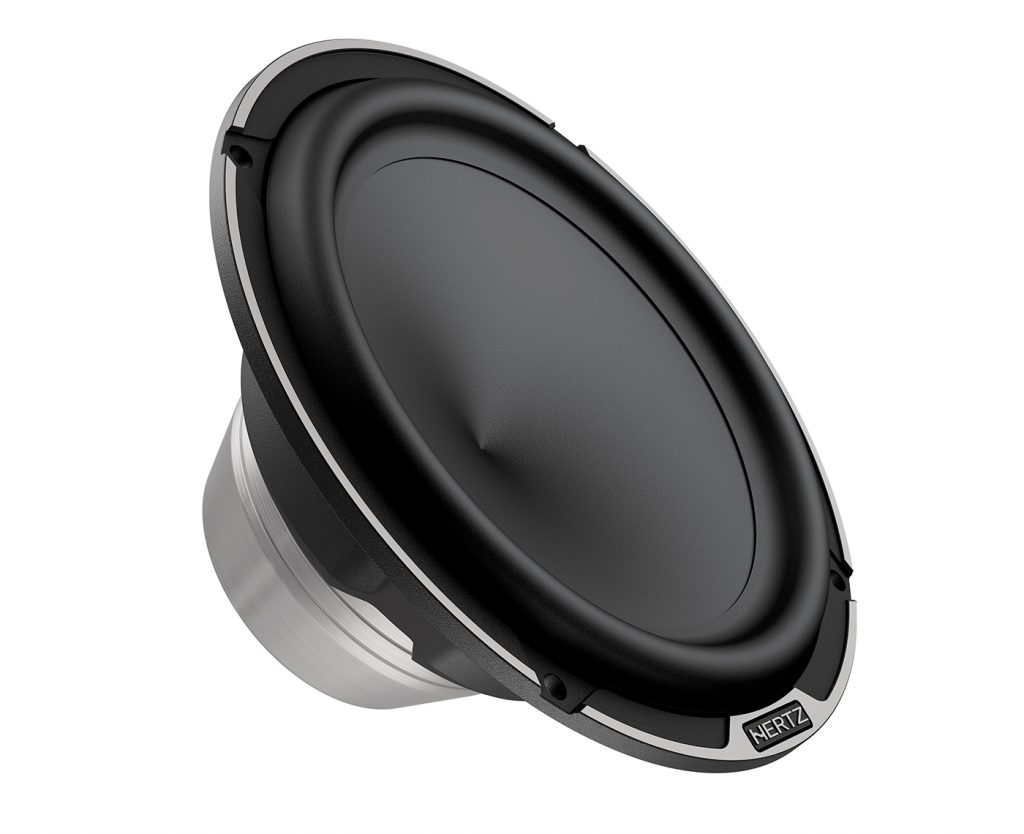

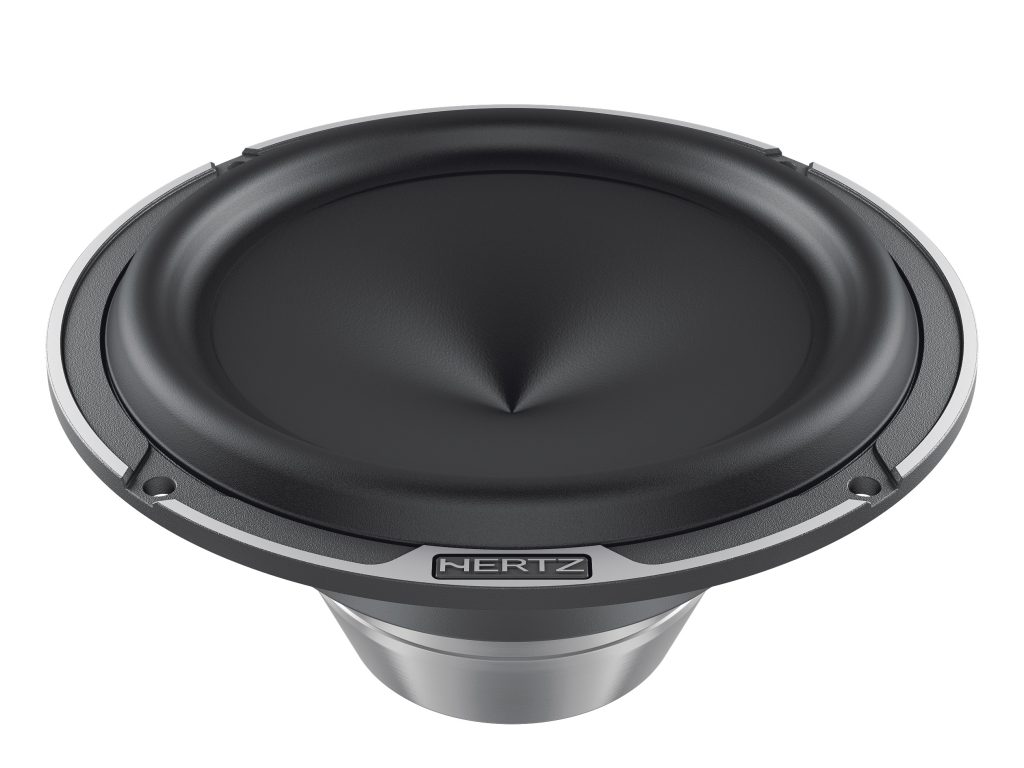

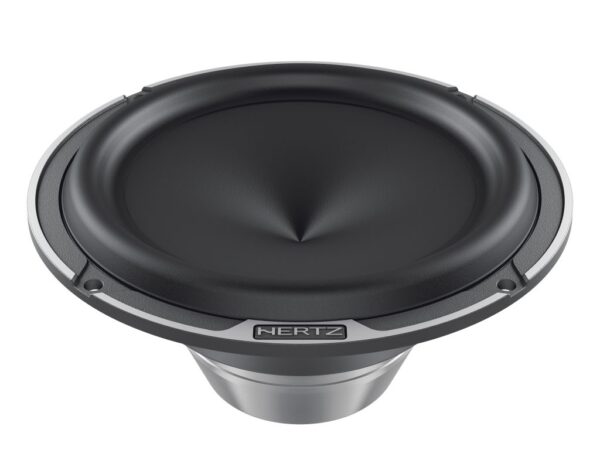

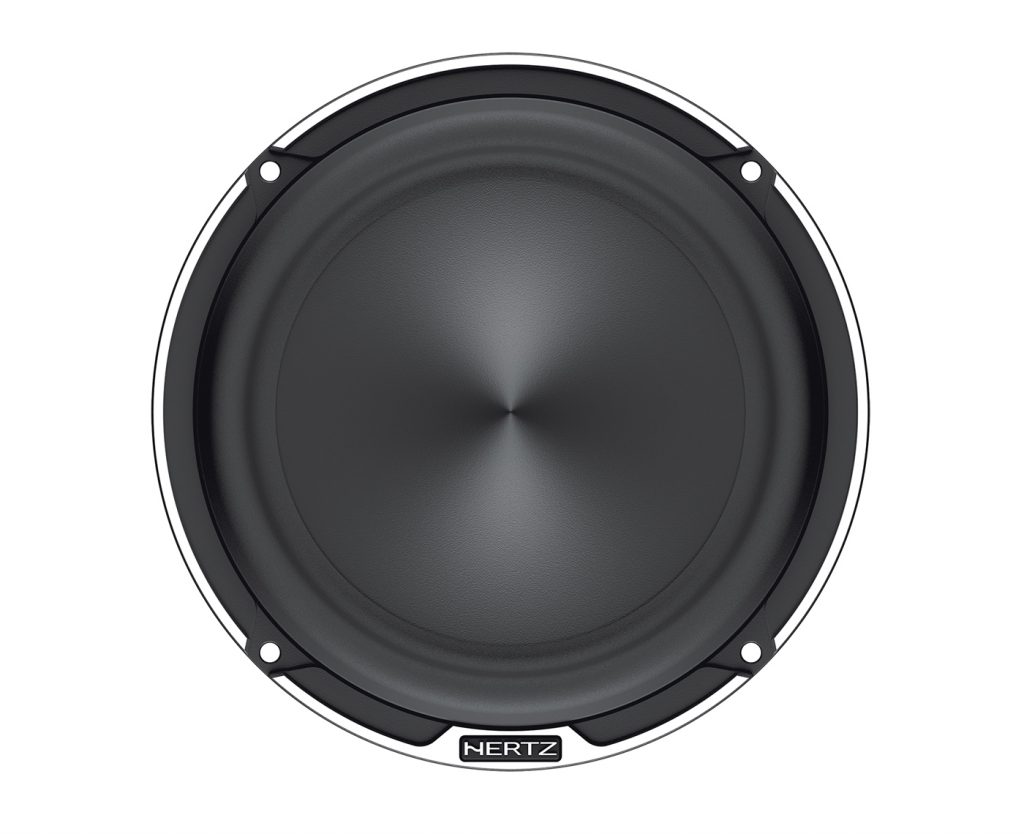

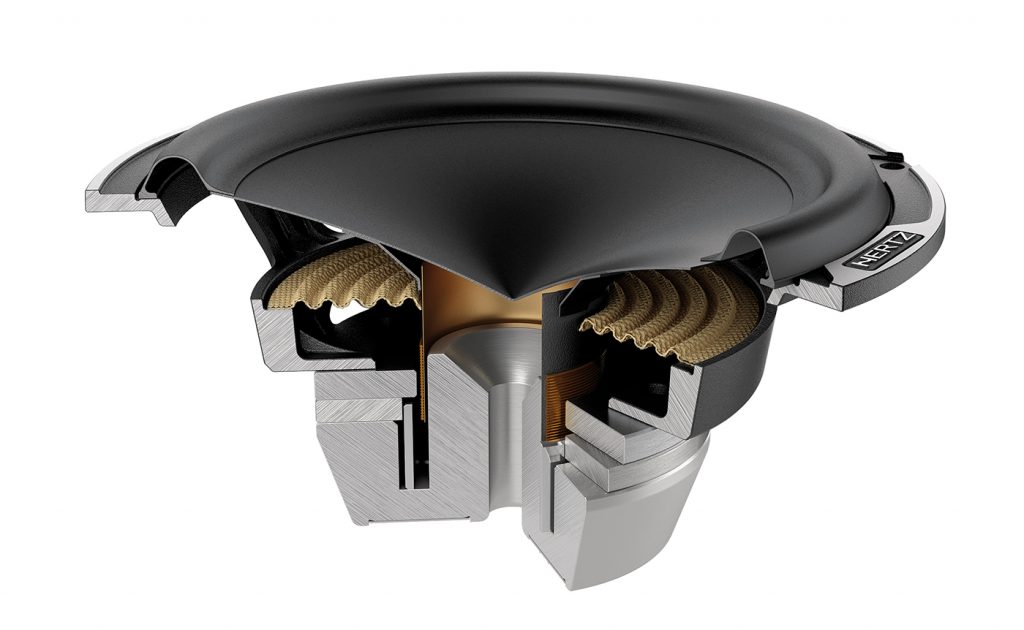

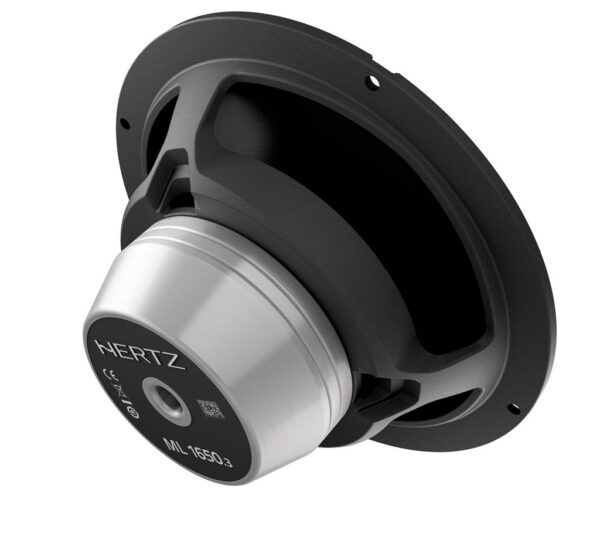

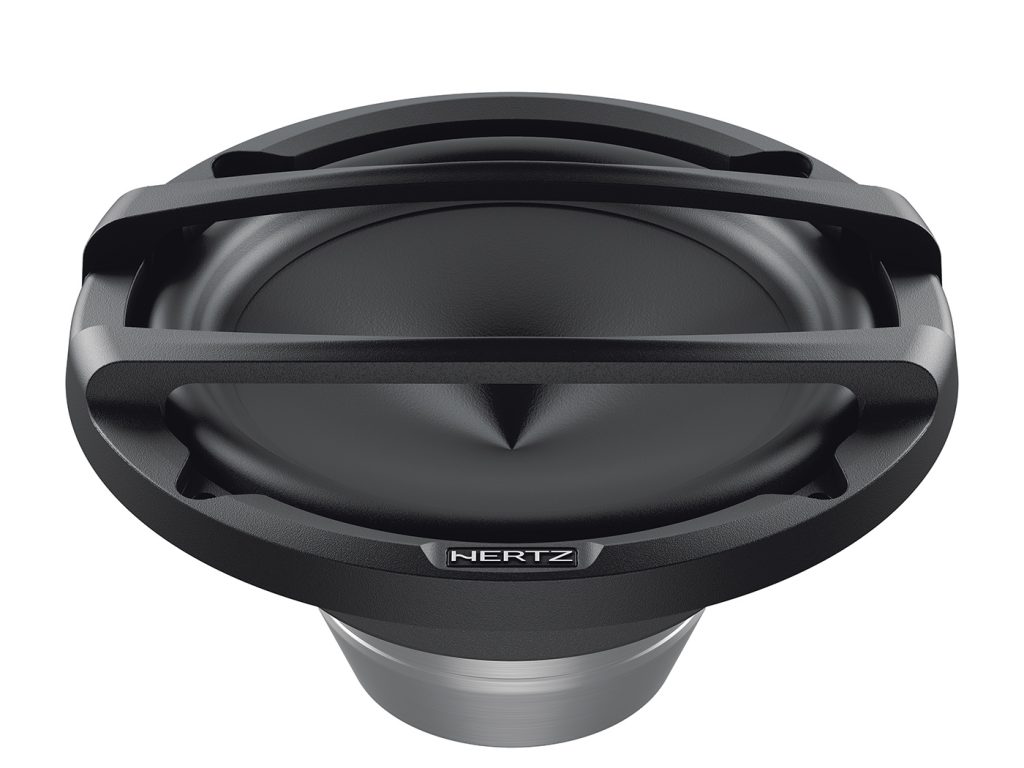

During these past few years, the Mille line car audio woofers have been the choice of many enthusiasts looking for extreme performance; with ML 1650.3 Legend the Hertz designers increased again the limits of achievable performance for components designed for door installation. To get to these results, the R&D staff performed extensive in-car voicing sessions, after building several prototypes with the FEA simulation method and testing them with a wide array of measurements carried out with the Klippel® suite. To ensure extraordinary power handling and very high thermal stability even with tracks especially rich of bass frequencies, ML 1650.3 Legend features a 36 mm mobile voice coil. This size ensures the best compromise between power handling and high frequency response.
| Component | Woofer |
| Size mm (in.) | 165 (6.5) |
| Power Handling – Continuous W | 125 |
| Power Handling – Peak W | 250 |
| Impedance Ohm | 4 |
| Voice Coil Ø | 36 (1.4) |
| Frequency Response Hz | 40 – 6.5k |
| Magnet size D x d x h mm (in.) | 80 x 45 x 5 (3.15 x 1.77 x 0.2) |
| Weight of one speaker kg (lb.) | 1,29 (2.84) |
| Magnet | Neodymium |
| Cone | Pressed-pulp cone with cotton fibres |
| Xmech mm (in.) | ±9 (0.35) |
| D mm | 132 |
| Re Ohm | 3,3 |
| Fs Hz | 65 |
| Le mH | 0,24 |
| Vas I | 8,3 |
| Mms g | 17,5 |
| Cms mm/N | 0,3 |
| BL T*m | 7 |
| Qts | 0,52 |
| Qes | 0,52 |
| Qms | 5,3 |
| Spl dB | 93 |
| A | 165 mm | 6.5 in. |
| B | 141 mm | 5.55 in. |
| C | 80 mm | 3.15 in. |
| D | 69 mm | 2.71 in. |
| E | 170 mm | 6.7 in. |
| F | 26 mm | 1.02 in. |
