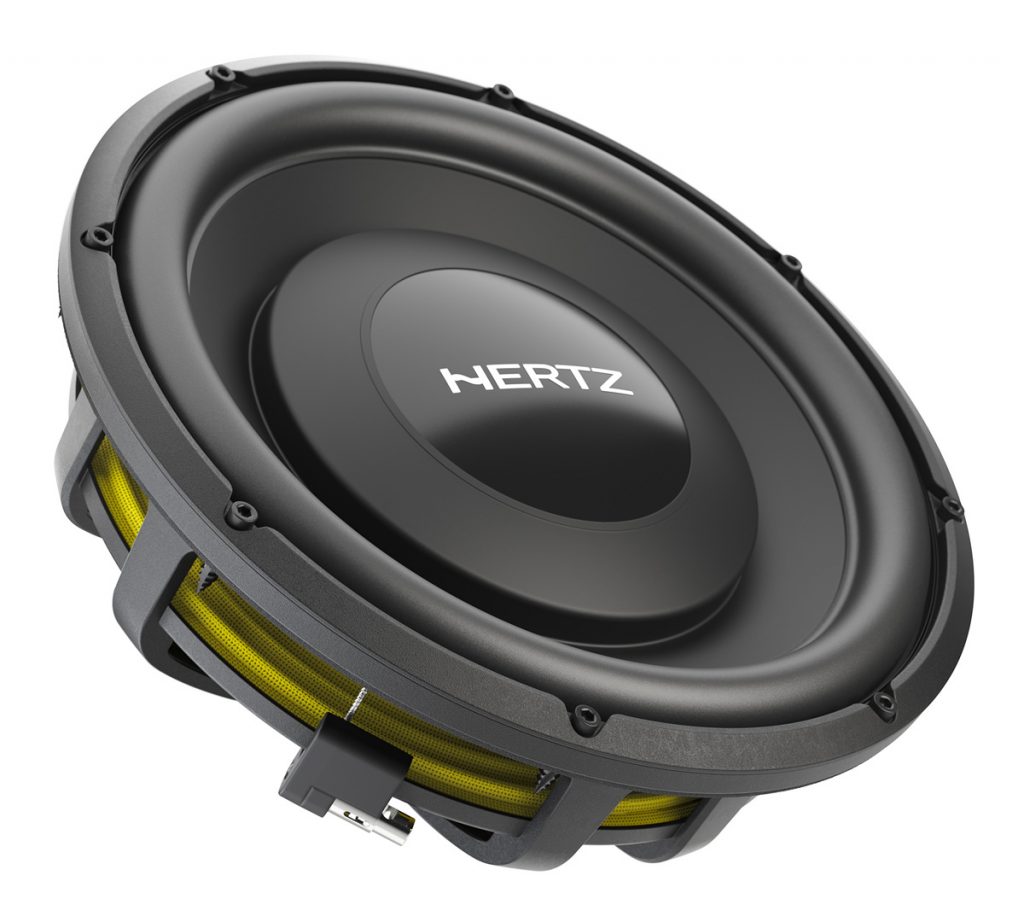

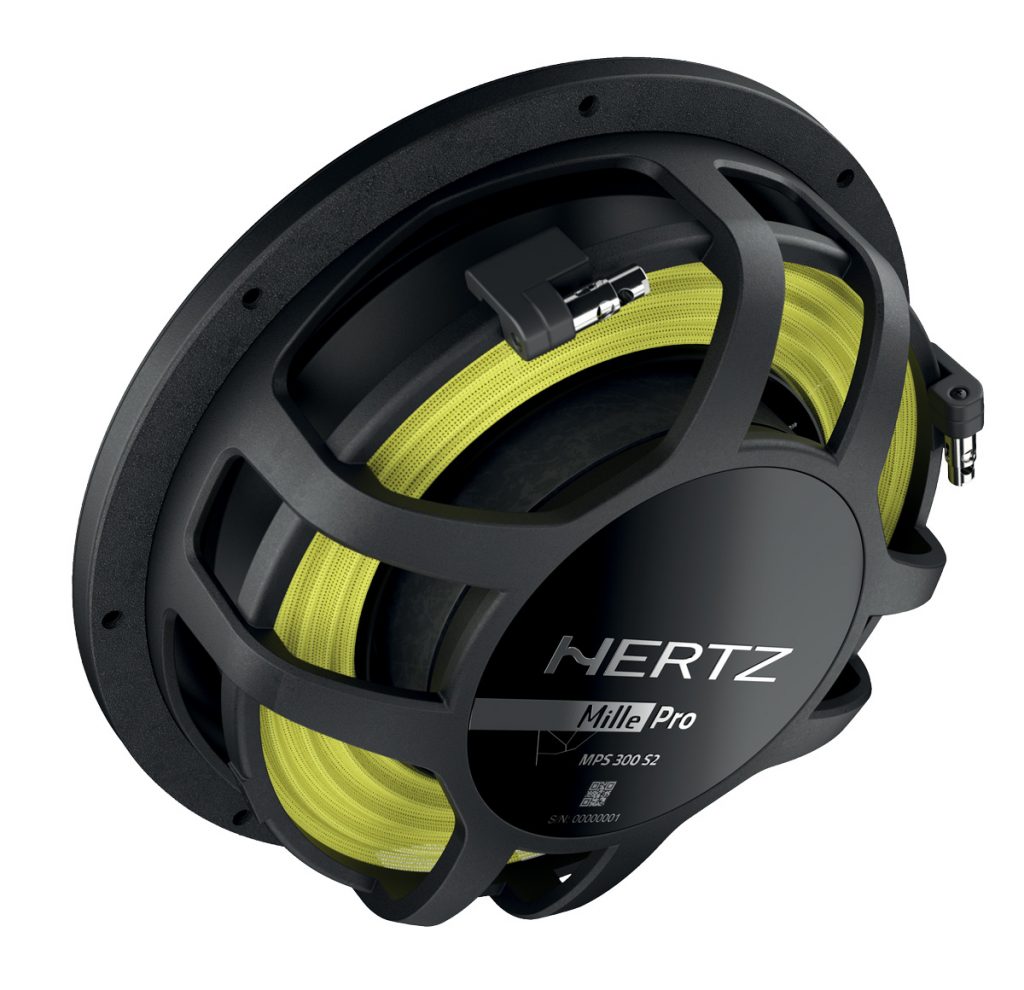

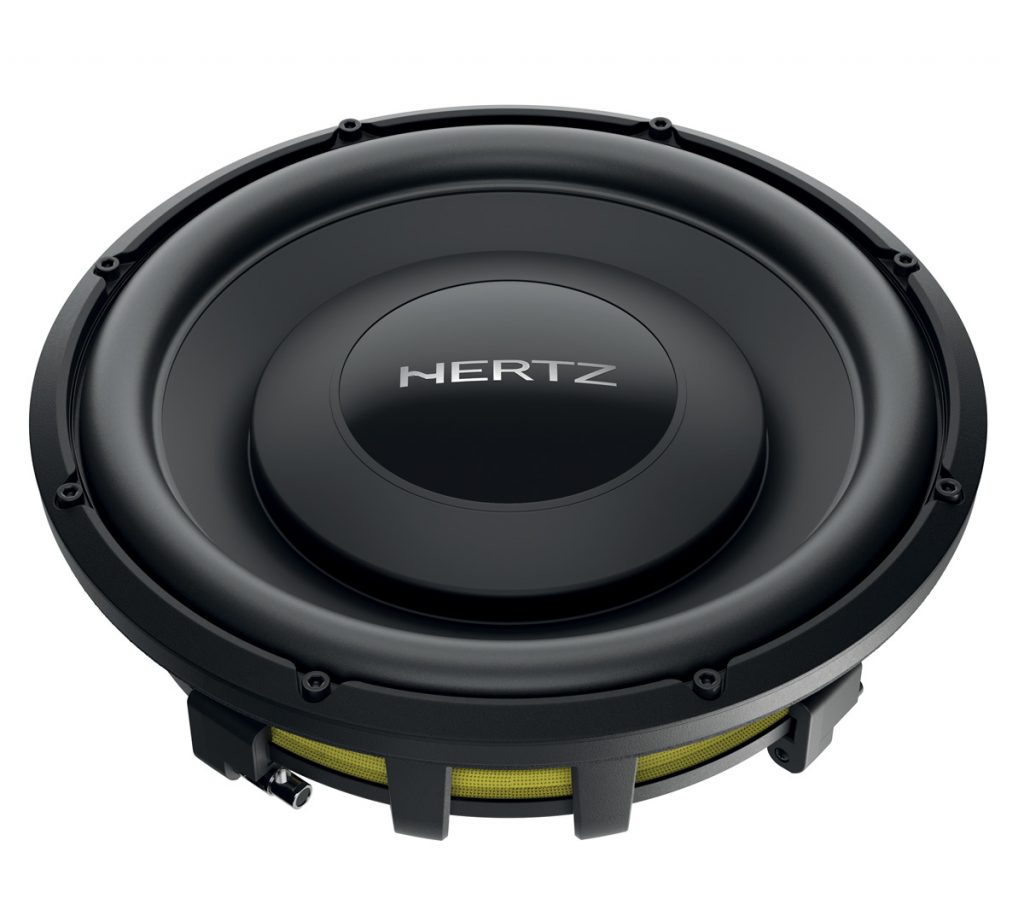

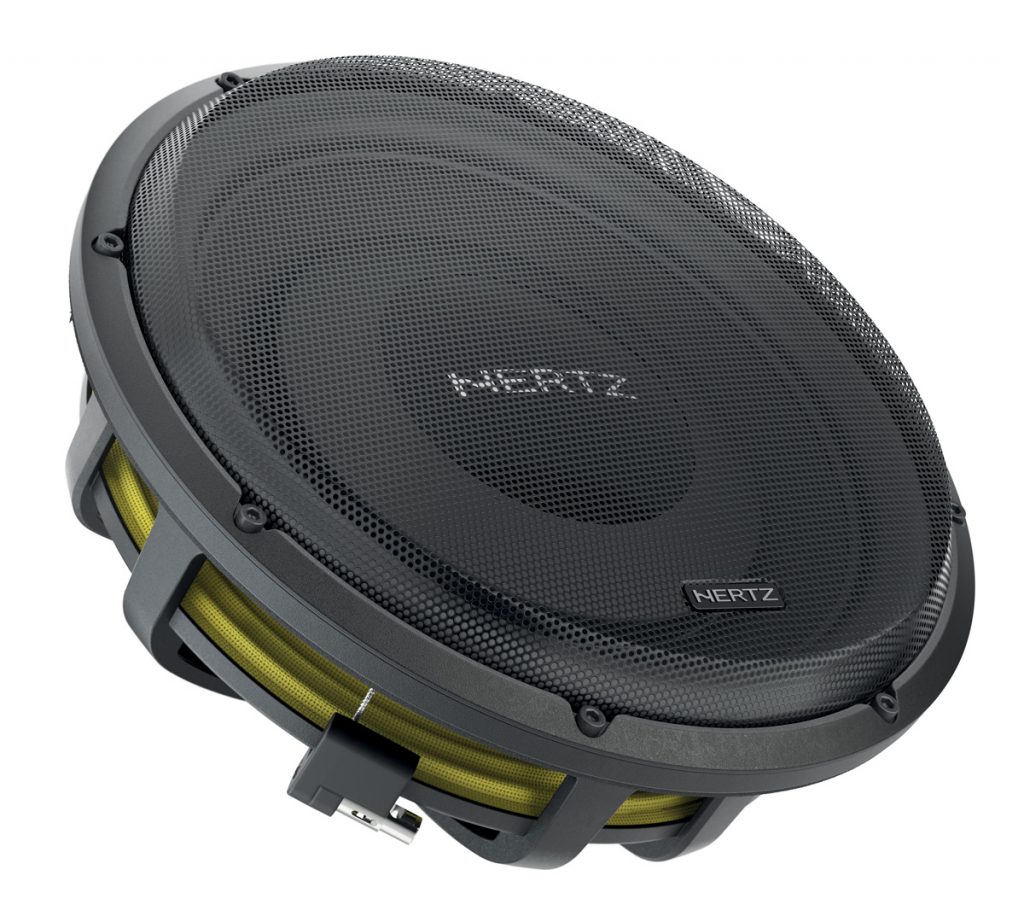

MPS 300 S2 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box. MPS 300 S2 is optimized to work in ultra-compact sealed boxes starting from only 22,7 Lt (0.8 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space – and the height – are limited.MPS 300 S2 has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.
| Size mm (in.) | 300 (12) |
| Power Handling – Continuous W | 500 |
| Power Handling – Peak W | 1000 |
| Impedance Ohm | 2 |
| Depth mm (in.) | 88 (3.46) |
| Voice Coil Type | single |
| No Filter Component | Subwoofers |
| Voice Coil Ø | 38 (1.5) |
| Frequency Response Hz | 25 – 400 |
| Magnet size D x d x h mm (in.) | 156 x 60 x 36 (6.14 x 2.36 x 1.42) |
| Weight of one component kg (lb.) | 6,64 (14.64) |
| Magnet | High density flux ferrite |
| Cone | Polypropylene |
| Xmech mm (in.) | 20 (0.79) |
| D mm | 262,59 |
| Xmax mm | 16,80 |
| Re Ohm | 1,9 |
| Fs Hz | 24 |
| Le mH | 1,48 |
| Vas I | 64,9 |
| Mms g | 295 |
| Cms mm/N | 0,16 |
| BL T*m | 12,3 |
| Qts | 0,51 |
| Qes | 0,55 |
| Qms | 7,5 |
| Spl dB | 84,5 |
Physical Specs
| A | 318,3 | 12.53 |
| B | 282,5 | 11.12 |
| C | 108,88 | 4.29 |
| D | 88 | 3.46 |
| E | 291,8 | 11.49 |
| F | 42,6 | 1.68 |
Frequency response
