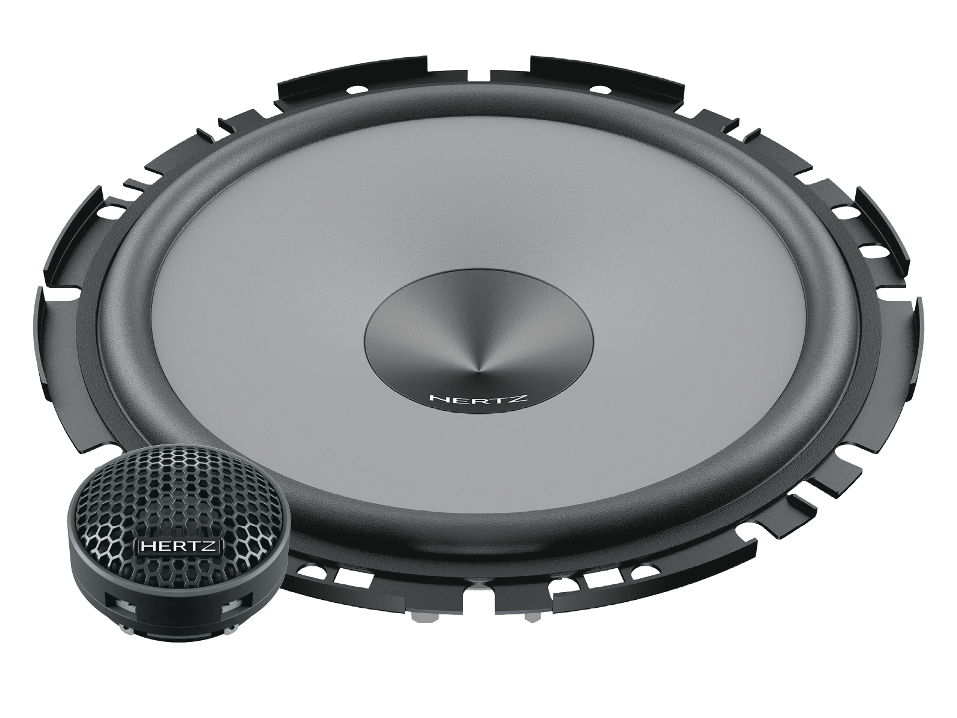

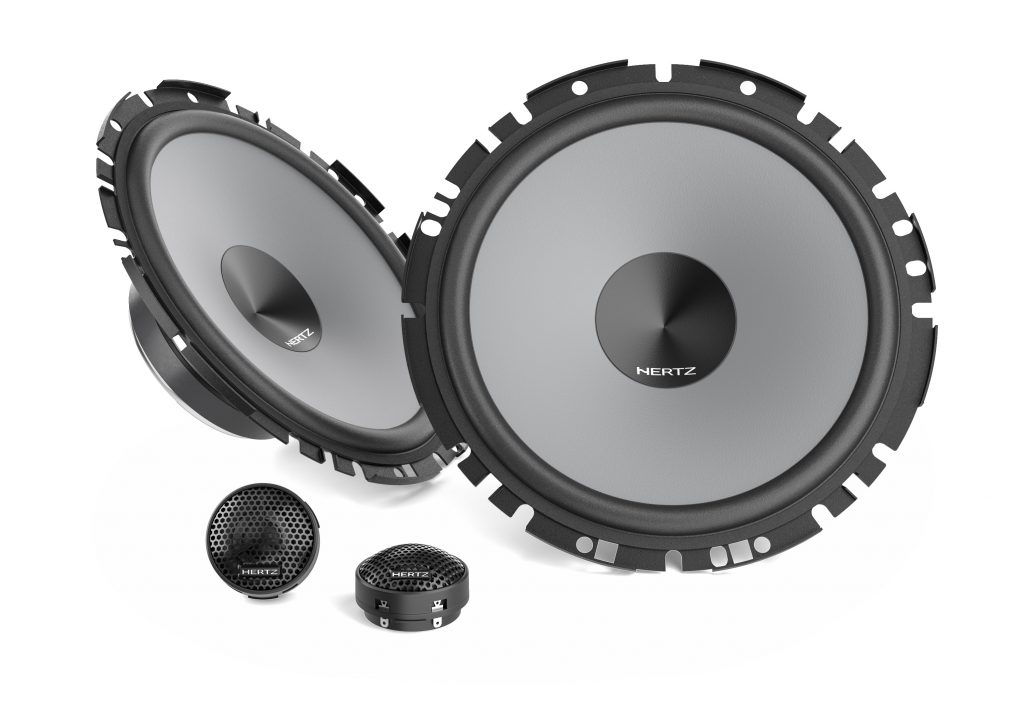

The K 170 Uno system features a 24 mm (0.9ˈ) diaphragm Neodymium tweeter with PEI dome, for a brilliant reproduction of high frequencies in a compact size. The annular acoustic lens is optimized for exceptional off-axis performance, ensuring an accurate stereo image. The 6.7” woofers features a pressed-paper cone with foam surround, for high SPL and solid bass. The 25 mm(1ˈ) woofer voice coil driven by a high-flux density ferrite magnet offers a highly dynamic power handling for a powerful undistorted sound. The 6dB/Oct crossover is integrated on the tweeter wiring for an easy OEM upgrade.
| Component | System |
| Size mm (in.) | 170 (6.7) |
| Power Handling – Continuous W | 70 |
| Power Handling – Peak W | 280 |
| Impedance Ohm | 4 |
| Tweeter diaphragm mm (in.) | 24 (0.9) |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Tweeter Voice Coil Ø mm (in.) | 14 (0.55) |
| Sensitivity dB SPL | 93,5 |
| Frequency Response Hz | 55 ÷ 23k |
| Crossover Cut off | – |
| Crossover Type | 6 dB/Oct tweeter integrated |
| Weight of one component – Tweeter kg (lb) | 0,53 (1.17) |
| Weight of one component – Crossover kg (lb) | 0,03 (0.07) |
Physical Specs
| A | 165 mm | 6.5 in. |
| B | 140 mm | 5.51 in. |
| C | 51 mm | 2.01 in. |
| D | 45 mm | 1.77 in. |
