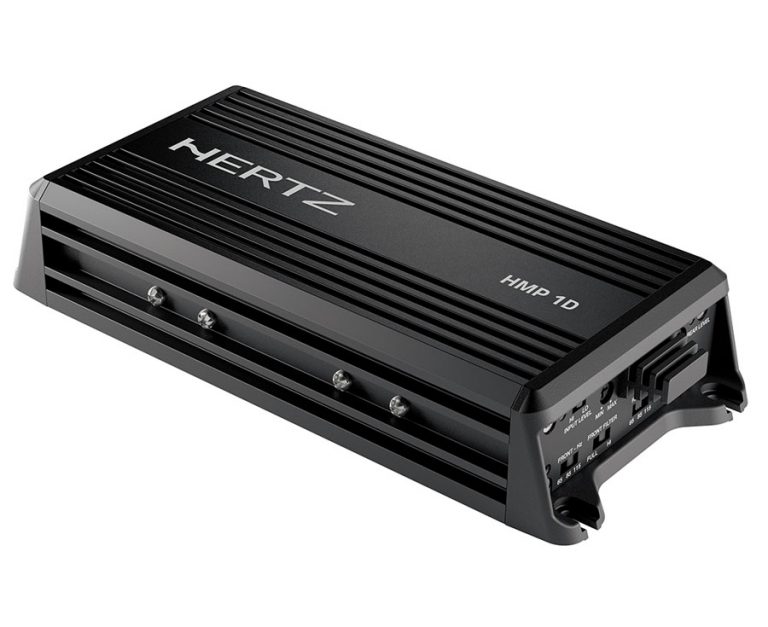

Thanks to the ultra-compact cast-aluminum chassis (IP64 rated), the HMP 1D amplifiers is nature-proof, being the ideal choice for UTV/ATV/motorcycle installations. It features an incredible power/size ratio and an easy setup thanks to the integrated crossover filter. The Front End section features a complete and bypassable crossover system, providing full system design flexibility with or without external processors, offering the user endless connection possibilities with any source. Inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences, for noise-free results.
| Channels | 1 |
| Power Supply | |
| Power supply voltage / fuse: | 11÷15 VDC / 1 x 15 A |
| Idling current (power ON/OFF): | 1 A / 0.04 mA |
| Consumption @ 2Ω, 14.4 VDC (Max Musical Power): | 15 A |
| Remote In: | 4 ÷ 15 VDC – 1 mA |
| ART : | Automatic Remote Turn-On/Off |
| Amplifier Stage | |
| Distortion – THD (100 Hz @ 4Ω): | 0.1 % |
| Bandwidth: | 10 ÷ 500 Hz |
| S/N Ratio (A weighted @ 1 V): | 105 dB |
| Damping factor (100 Hz @ 4Ω): | 300 |
| Pre-In sensitivity: | LO: 0.2 ÷ 5 V HI: 0.8 ÷ 20 V |
| Load impedance (MIN) @ 2 Ch: | 2Ω |
| Max size (mm/in.): | 223 x 100.5 x 43.6 / 8.77 x 3.95 x 1.70 |
| Weight (kg/lb.): | 1.35 / 2.97 |
| Adjustable Crossovers | yes |
