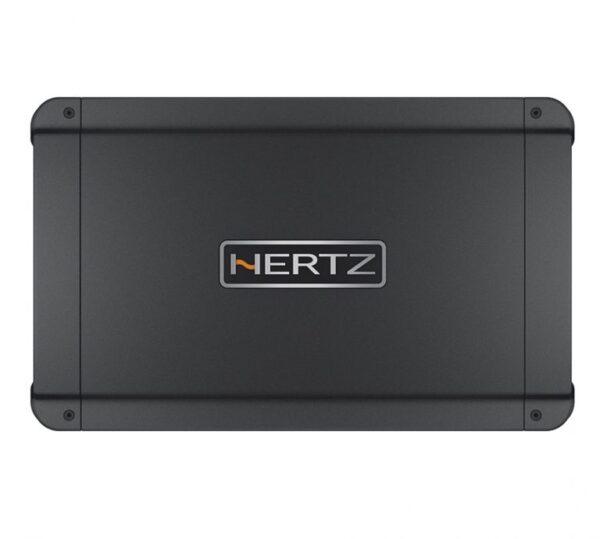

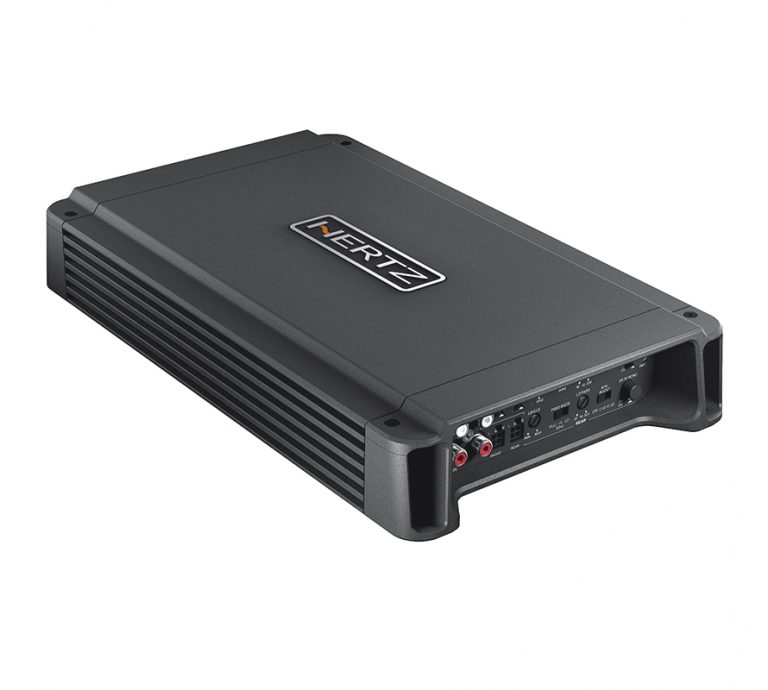

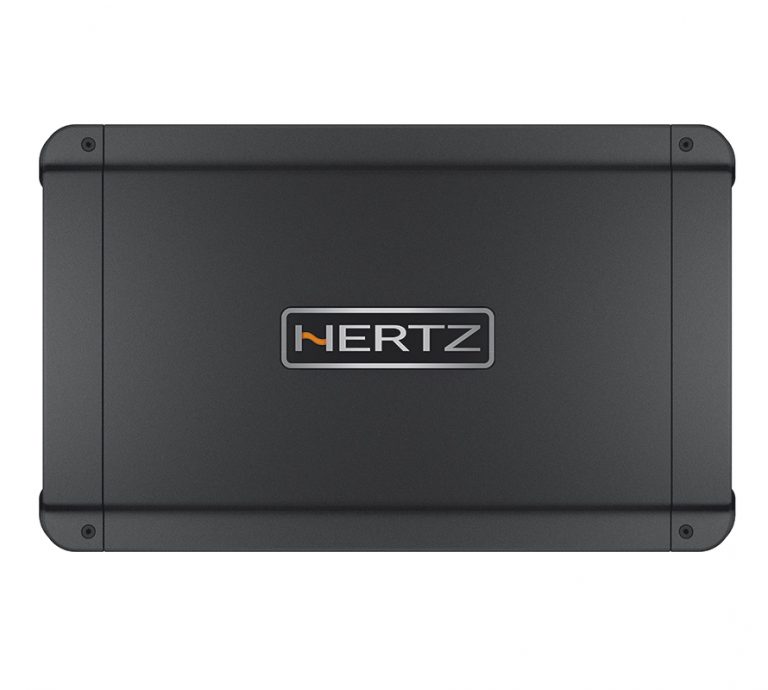

HCP 4 is a four channels car audio amplifier designed to reproduce any musical genres with four separate channels for multiple configurations. Pre-amplified (Pre-In) inputs and high-level (Speaker-In) inputs allow for connection with any head units. Built to work both in mono, as part of a three-channel system with sub and front, and in stereo for a powerful two-channel system, HCP 4 is a unique model in terms of versatility! All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.
| Channels | 4 – 3 – 2 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 2 x 20 A |
| Idling current (power ON/OFF) | 1 A / 0.04 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): | 21 A |
| Remote In: | 7 ÷ 15 VDC – 1 mA |
| ART: | Automatic Remote Turn-On/Off with Speaker-In |
| AMPLIFIER STAGE | |
| Distorsion – THD (100 Hz @ 4Ω): | 0.01 % |
| Bandwidth: | 10 ÷ 45K Hz |
| S/N Ratio (A weighted @ 1 V) | 103 dB |
| Damping factor (100 Hz @ 4 Ω): | 120 |
| Pre-In sensitivity | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN) | |
| @ 4 Ch: | 2 Ω |
| @ 3 Ch: | 2 Ω + 2 Ω + 4 Ω |
| @ 2 Ch: | 4 Ω |
| Max size (mm / in.): | 315 x 190 x 50 / 12.40 x 7.48 x 1.97 |
| Weight (kg / lb.): | 2.62 / 5.77 |
| Adjustable Crossovers | yes |
