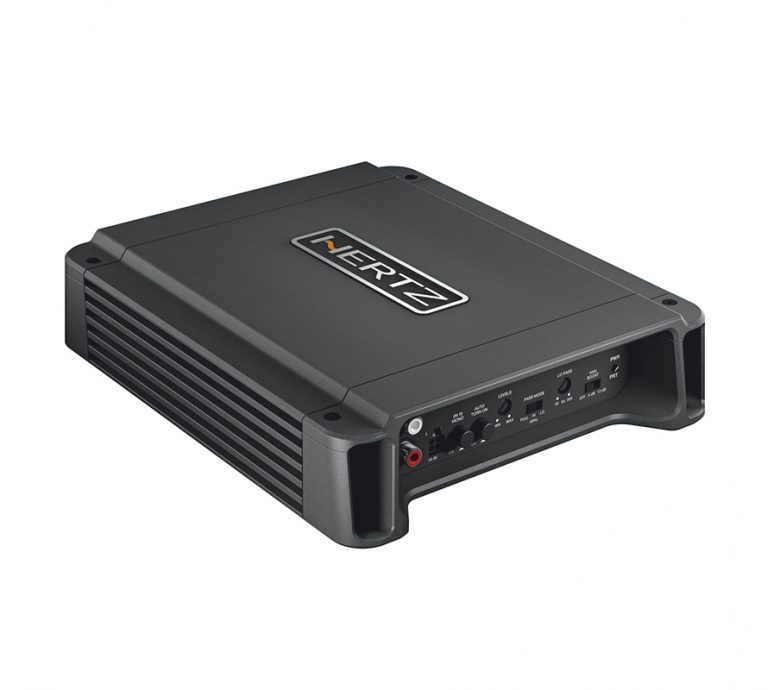

HCP 2 is a stereo, 400W car audio amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units.
All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. With HCP 2 high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 ÷ 12 dB) to enhance low frequencies.
| Channels | 2 – 1 |
| POWER SUPPLY | |
| Power supply voltage / fuse: | 11 ÷ 15 VDC / 1 x 20 A |
| Idling current (power ON/OFF) | 0.4 A / 0.04 mA |
| Consumption @ 2 Ω, 14.4 VDC (Max Musical Power): | 12 A |
| Remote In: | 7 ÷ 15 VDC – 1 mA |
| ART: | Automatic Remote Turn-On/Off with Speaker-In |
| AMPLIFIER STAGE | |
| Distorsion – THD (100 Hz @ 4 Ω) | 0.01 % |
| Bandwidth: | 10 ÷ 65k Hz |
| S/N Ratio (A weighted @ 1 V): | 103 dB |
| Damping factor (100 Hz @ 4 Ω): | 200 |
| Pre-In sensitivity: | 0.2 ÷ 5 VRMS |
| Speaker-In sensitivity: | 0.8 ÷ 20 VRMS |
| Load impedance (MIN) | |
| @ 2 Ch: | 2 Ω |
| @ 1 Ch: | 4 Ω |
| Max size (mm / in.): | 215 x 190 x 50 / 8.46 x 7.48 x 1.97 |
| Weight (kg / lb.): | 1.80 / 3.96 |
| Adjustable Crossovers | yes |
