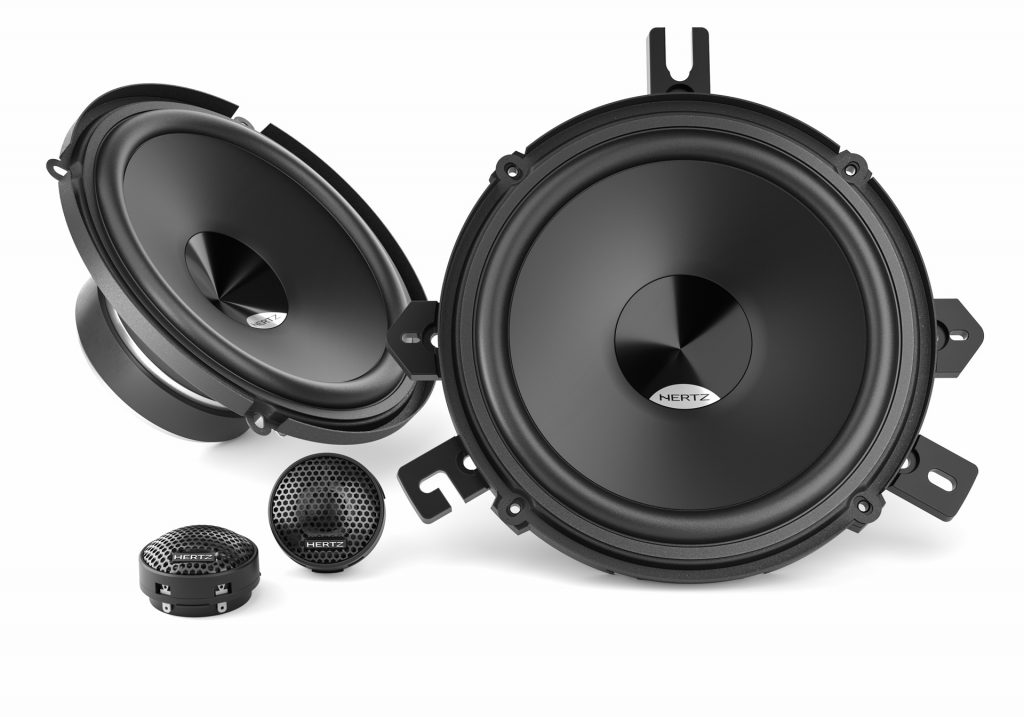

Hertz DSK 160.3 car audio two-way speaker system will include an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers and a cable with built-in crossover for the DT 24.3 tweeter, designed to save space in an OEM upgrade scenario.
| Component | Two way system |
| Size mm (in.) | 160 (6) |
| Power Handling – Continuous W | 80 |
| Power Handling – Peak W | 160 |
| Impedance Ohm | 4 |
| Woofer Voice Coil Ø mm (in.) | 25 (1) |
| Sensitivity dB SPL | 93 |
| Frequency Response Hz | 50 ÷ 23k |
| Crossover Type | Hi Pass |
| Weight of one component – Woofer | 0,73 (1.61) |
| Weight of one component – Tweeter kg (lb) | 0,03 (0.07) |
| Weight of one component – Crossover kg (lb) | 0,16 (0.35) |
| D mm | 124 |
| Re Ohm | 3,2 |
| Fs Hz | 70 |
| Le mH | 0,18 |
| Vas I | 10,28 |
| Mms g | 10 |
| Cms mm/N | 0,50 |
| BL T*m | 4,5 |
| Qts | 0,62 |
| Qes | 0,69 |
| Qms | 6,3 |
| Spl dB | 93 |
Physical Specs
| A | 167 mm | 6.57 in. |
| B | 127 mm | 5 in. |
| C | 66,5 mm | 2.62 in. |
| D | 56,5 mm | 2.22 in. |
