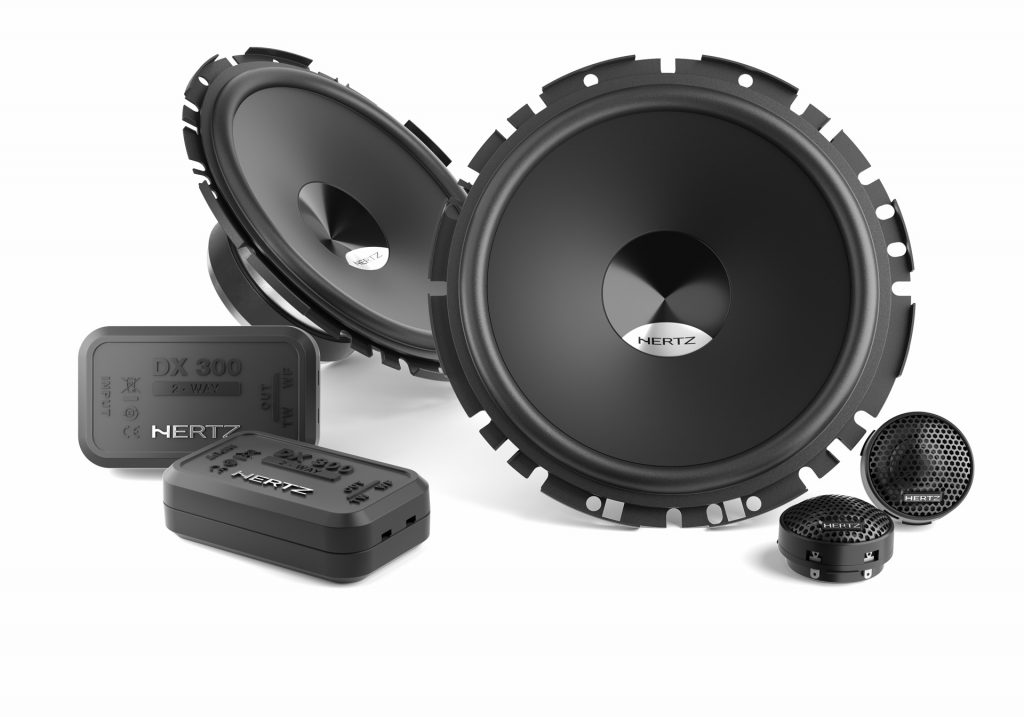

Hertz DSK 170.3 Dieci series car audio systems let you realize a high-quality audio system with the utmost in simplicity. The woofers employ the exclusive V-cone® profile for amazing off-axis response and detailed mid-high range. The TPU (Thermoplastic polyurethane) surround ensures linearity and reduction of unwanted resonance, even at high excursion. High-performance materials, such as the neodymium motor assembly and the PEI membrane, ensure an extended high-frequency range. The passive filters are found directly on the supplied connection cables, along with a rich array of accessories increasing the install-friendliness and installation time.
| Component | Two way system |
| Size mm (in.) | 170 (6.7) |
| Power Handling – Continuous W | 80 |
| Power Handling – Peak W | 160 |
| Impedance Ohm | 4 |
| Woofer Voice Coil Ø mm (in.) | 25 (1.0) |
| Sensitivity dB SPL | 93 |
| Frequency Response Hz | 50 ÷ 23k |
| Crossover Cut off | 3,5 kHz @ 12 dB Oct. |
| Crossover Type | Hi Pass |
| Weight of one component – Woofer | 0,53 (1.17) |
| Weight of one component – Tweeter kg (lb) | 0,03 (0.07) |
| Weight of one component – Crossover kg (lb) | 0,16 (0.35) |
| D mm | 133 |
| Re Ohm | 3,6 |
| Fs Hz | 79 |
| Le mH | 0,26 |
| Vas I | 11,3 |
| Mms g | 10 |
| Cms mm/N | 0,4 |
| BL T*m | 3,9 |
| Qts | 0,96 |
| Qes | 1,15 |
| Qms | 5,78 |
| Spl dB | 93 |
Physical Specs
| A | 165 mm | 6.5 in. |
| B | 140 mm | 5.5 in. |
| C | 50 mm | 2.0 in. |
| D | 45 mm | 1.8 in. |
