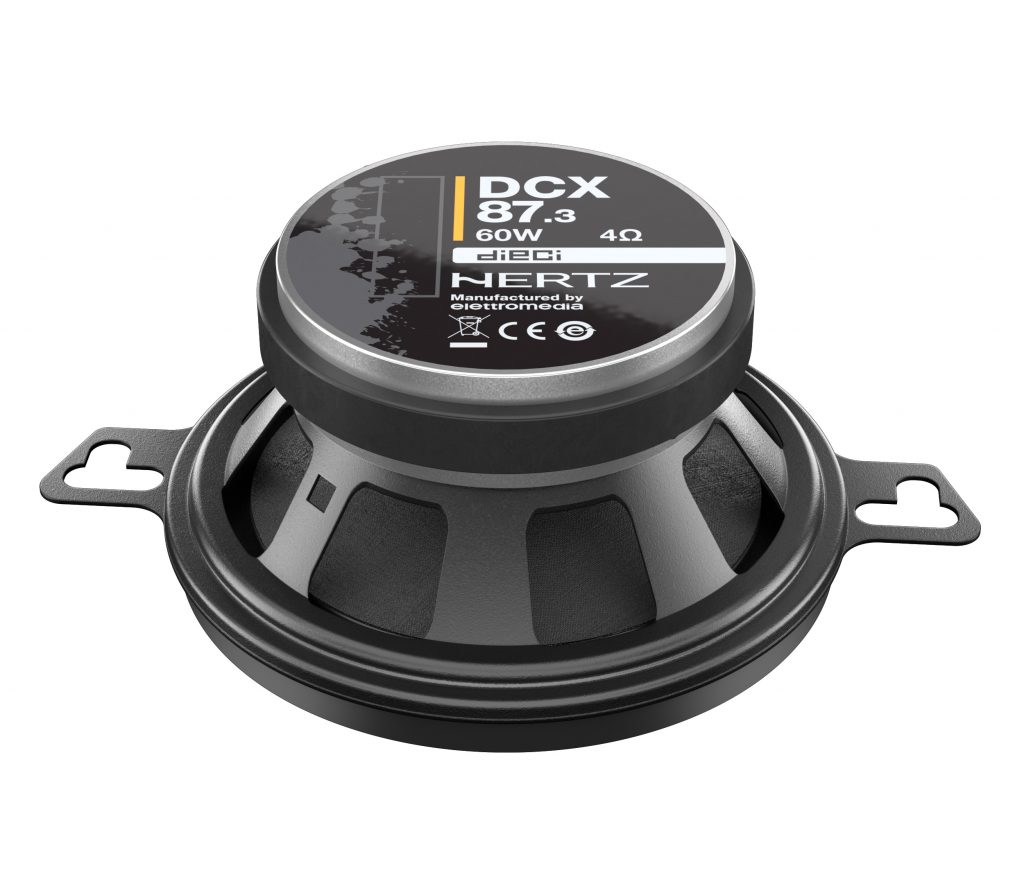

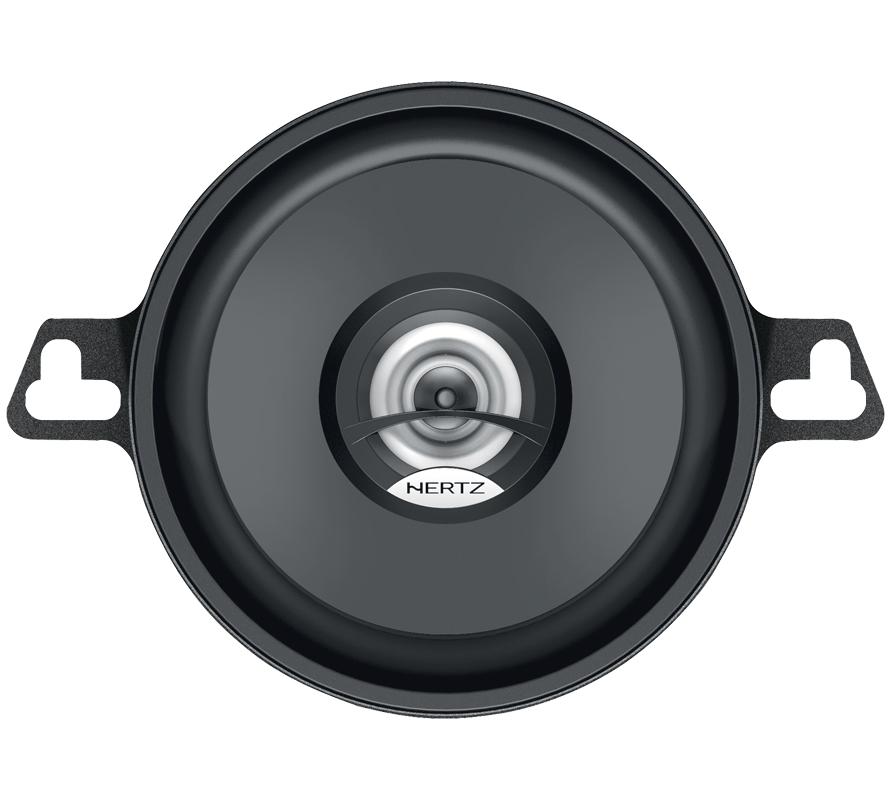

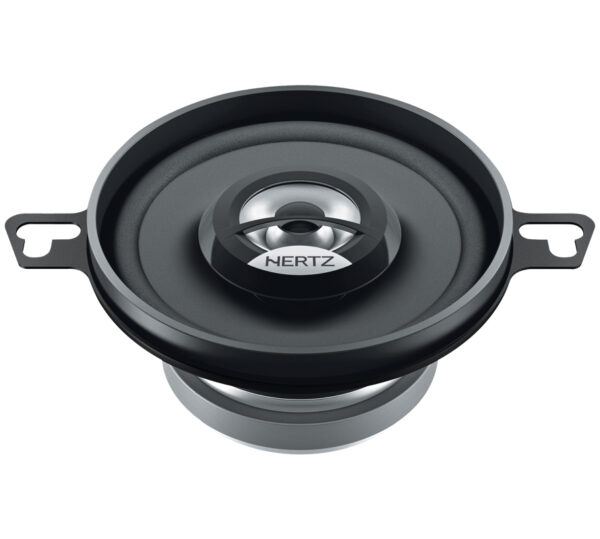

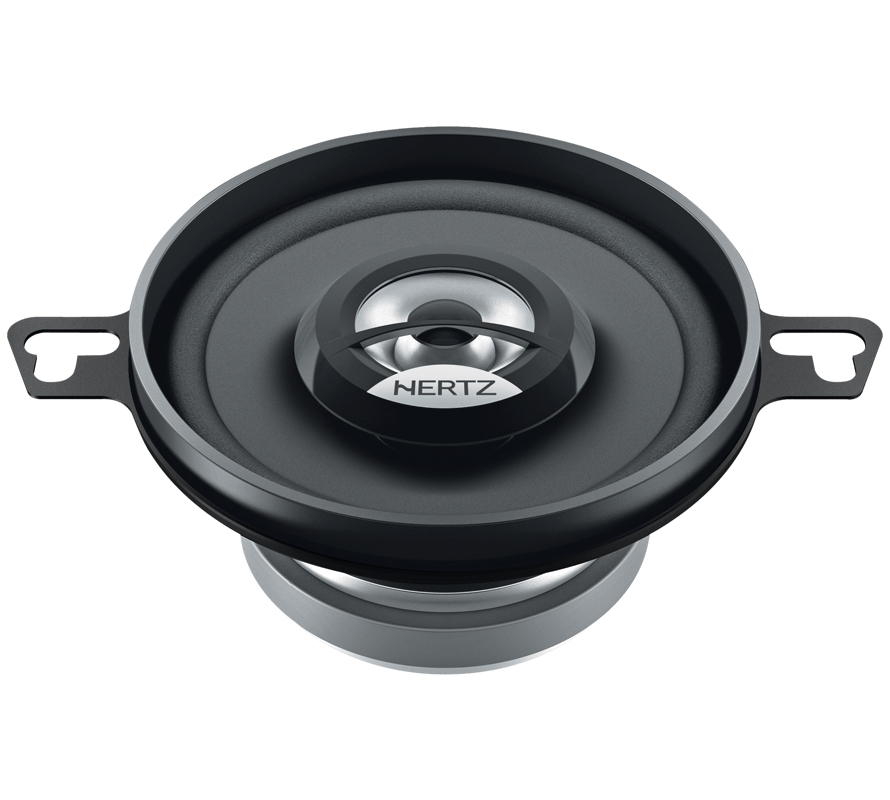

Hertz DCX 87.3 coaxial speaker combines a woofer made of the highest performance materials with a neodymium tweeter featuring the exclusive PEI dome. Despite its compact size, the DCX 87.3 features an oversized magnetic group for ultimate control, still maintaining a compact size. For those who look for a high-performance two-way coax, the DCX 87.3 is able to ensure wide frequency response and excellent sound in any installation.
| Component | Two way coaxial |
| Size mm (in.) | 87 (3.4) |
| Power Handling – Continuous W | 30 |
| Power Handling – Peak W | 60 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 45 (1.8) |
| Woofer Voice Coil Ø mm (in.) | 20 (0.8) |
| Frequency Response Hz | 130 ÷ 21k |
| Woofer Magnet size D x d x h mm (in.) | 60 x 24 x 8 (2.4 x 0.9 x 0.3) |
| Weight of one speaker kg (lb.) | 0,31 (0.68) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Water-repellent pressed paper |
| Dome | PEI |
| D mm | 70 |
| Re Ohm | 3,1 |
| Fs Hz | 190 |
| Vas I | 0,7 |
| Mms g | 2,0 |
| Cms mm/N | 0,35 |
| BL T*m | 2,5 |
| Qts | 1 |
| Qes | 1,25 |
| Qms | 5,66 |
| Spl dB | 92 |
Physical Specs
| A | 87 mm (3.4 in. |
| A3 | 120 mm (4.7 in.) |
| B | 81 mm (3.2 in.) |
| C | 45 mm (1.8 in.) |
| D | 34 mm (1.3 in.) |
