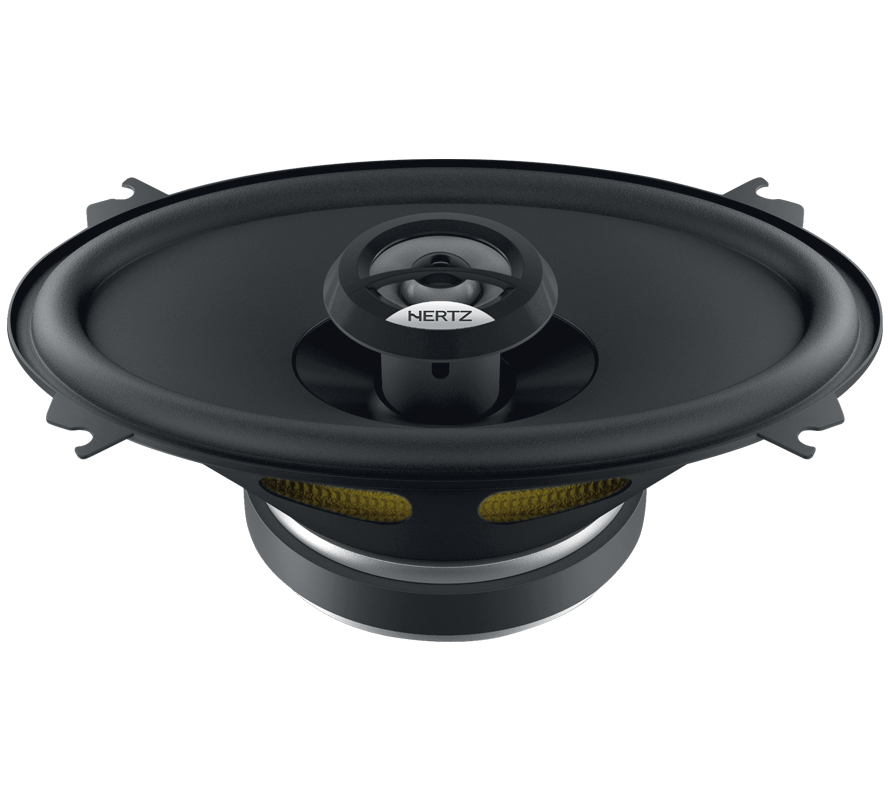

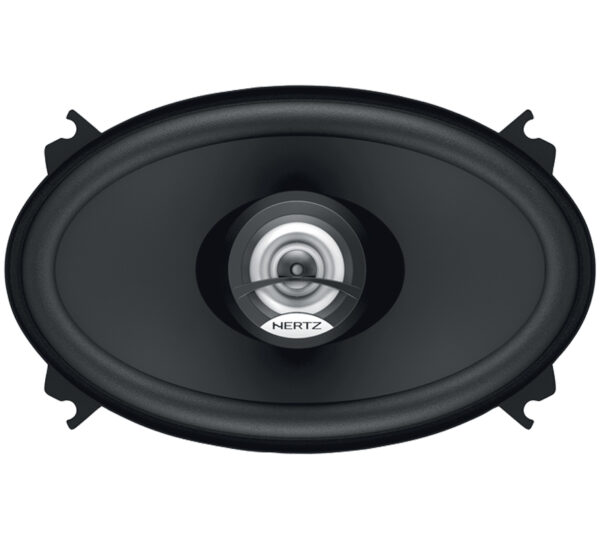

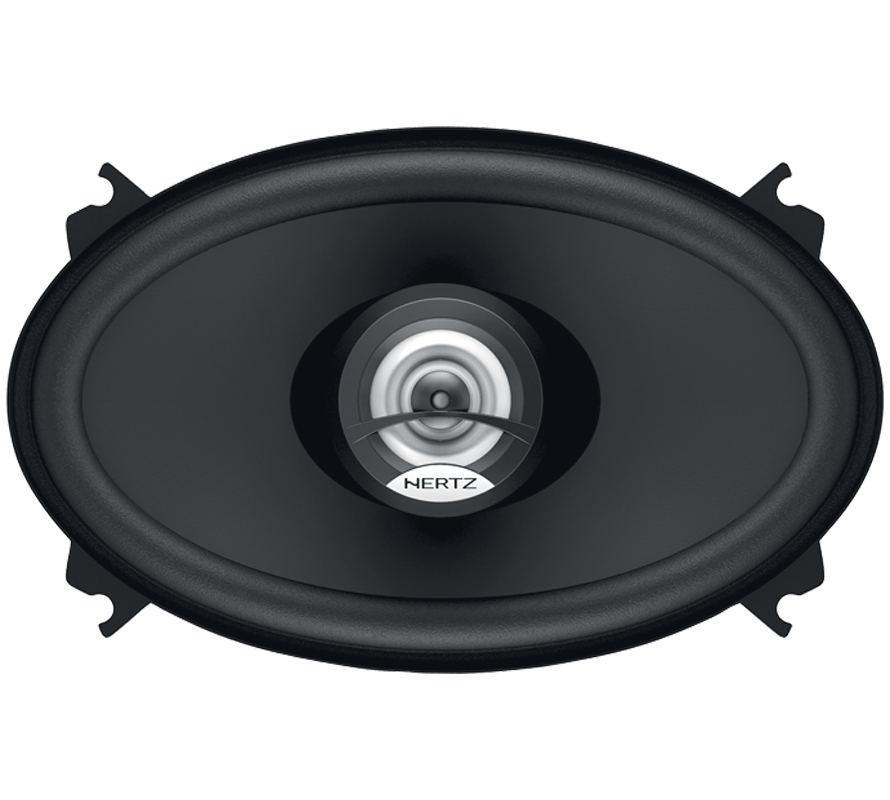

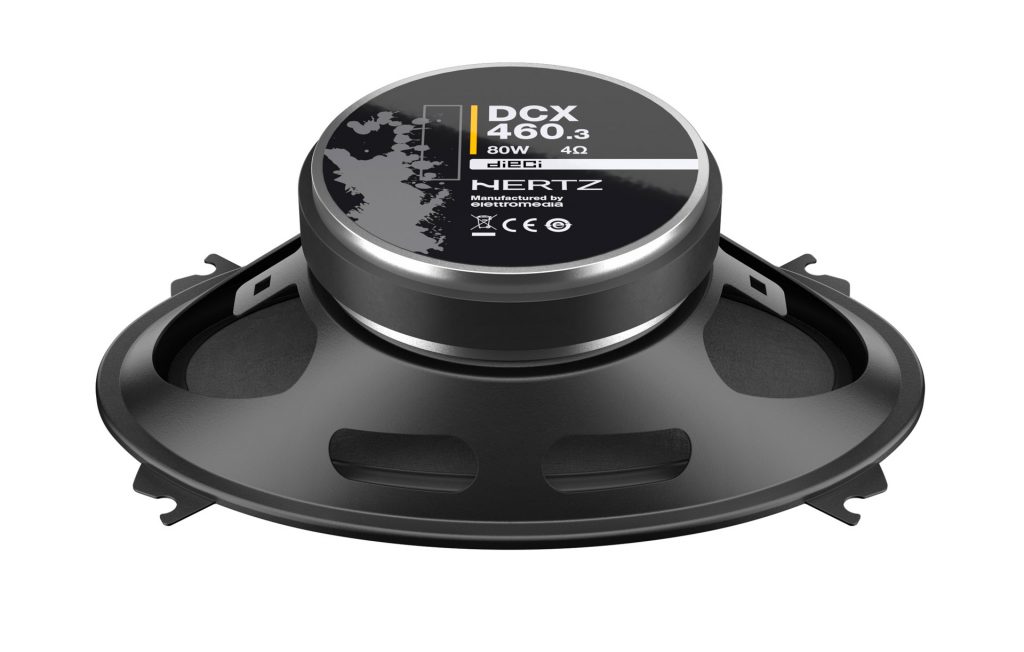

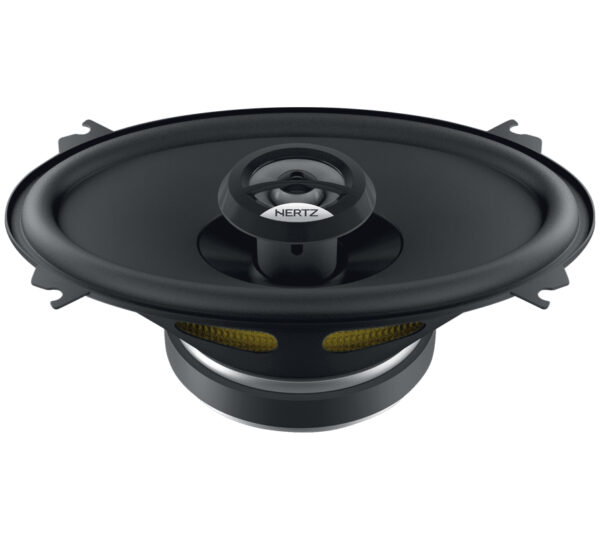

Hertz DCX 460.3car audio coaxial features a neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a copper mobile voice coil wound on conex former. This 2-way coax speaker is designed to satisfy specific installation and listening needs. An extremely light, yet stiff structure ensures linear frequency response and a high sensitivity level.
| Component | Two way coaxial |
| Size mm (in.) | (4 x 6) |
| Power Handling – Continuous W | 40 |
| Power Handling – Peak W | 80 |
| Impedance Ohm | 4 |
| Depth mm (in.) | 53 (2.1) |
| Woofer Voice Coil Ø mm (in.) | 25 (1.0) |
| Frequency Response Hz | 65 ÷ 21k |
| Woofer Magnet size D x d x h mm (in.) | 80 x 32 x 10 (3.1 x 1.3 x 0.4) |
| Weight of one speaker kg (lb.) | 0,58 (1.28) |
| Woofer Magnet | High density flux ferrite |
| Tweeter Magnet | Neodymium |
| Cone | Water-repellent pressed paper |
| Dome | PEI |
| D mm | 103 |
| Re Ohm | 3,3 |
| Fs Hz | 90 |
| Vas I | 6,2 |
| Mms g | 6 |
| Cms mm/N | 0,41 |
| BL T*m | 3,8 |
| Qts | 0,79 |
| Qes | 0,92 |
| Qms | 5,20 |
| Spl dB | 93 |
Physical Specs
| A1 | 155 mm (6.1 in.) |
| A2 | 97 mm (3.8 in.) |
| B1 | 146 mm (5.7 in.) |
| B2 | 89 mm (3.5 in.) |
| C | 53 mm (2.1 in.) |
| D | 45 mm (1.8 in.) |
