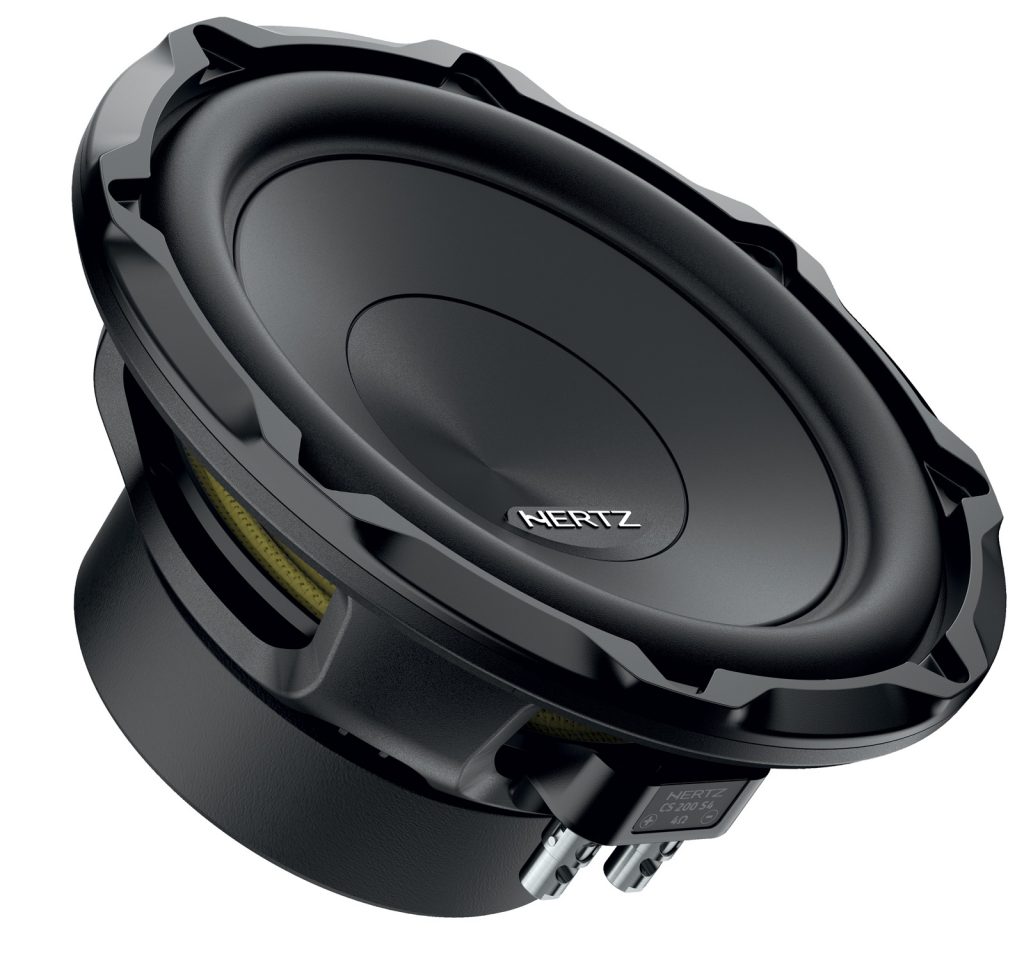

Hertz – CS 200 S4

$199.99

Hertz CS 200 S4 Cento subwoofer is the perfect enhancement to every sound system, to fully enjoy the authentic Hertz Sound Experience!   The R&D team, always at the forefront in the search for innovative solutions, with unfailing effort succeeded in obtaining powerful bass frequencies from compact sealed enclosures, optimizing all the electroacoustic parameters according to the target set: high performance with boxes starting from 9,6 l (0.33 CF). The reduced depth, the compact magnetic group, and the lack of rear decompression hole allow the box to be shaped around the subwoofer, obtaining a depth almost the same as the driver itself, for maximum freedom of installation on any type of car. The special cooling system for the six-layer voice coil keeps the operating temperature within the optimal range, even in case of extended listening sessions at high sound pressure.

Size mm (in.) 200 (8)
Power Handling – Continuous W 150
Power Handling – Peak W 300
Impedance Ohm 4
Voice Coil Type single
No Filter Component SUBWOOFER
Voice Coil Ø 35 (1.38)
Magnet size D x d x h mm (in.) 120 x 50 x 28 (4.72 x 1.97 x 1.1)
Weight of one component kg (lb.) 2,87 (1.30)
Magnet High density flux ferrite
Cone Polyproyilene
Xmech mm (in.) 11,5 (0.45)
Technical Specs
D mm 172
Xmax mm 9
Re Ohm 3,3
Fs Hz 40
Le mH 1,7
Vas I 13,7
Mms g 76,8
Cms mm/N 0,21
BL T*m 10,6
Qts 0,52
Qes 0,58
Qms 5
Spl dB 84
Electro-acoustic Specs
Physical Specs

CS 200 S4

A 213 mm 8.39 in.
B 177 mm 6.97 in.
C 114 mm 4.49 in.
D 101 mm 3.98 in.
E 201 mm 7.92 in.
F 24 mm 0.95 in.
