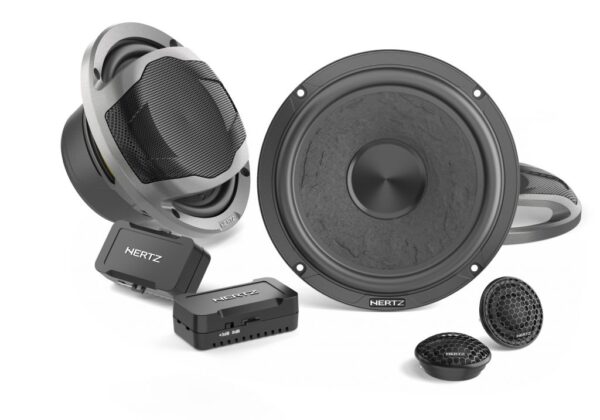

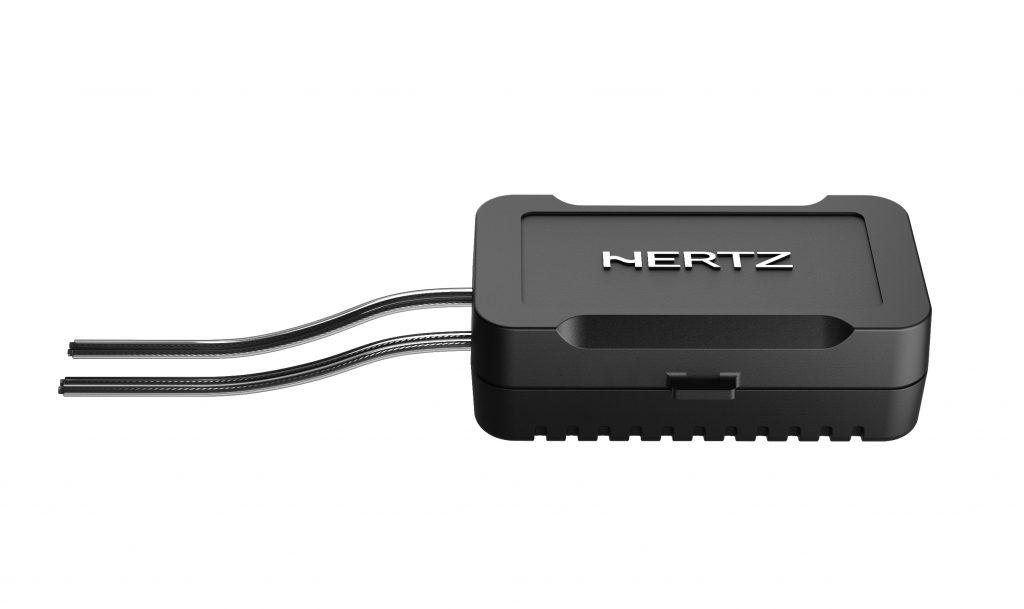

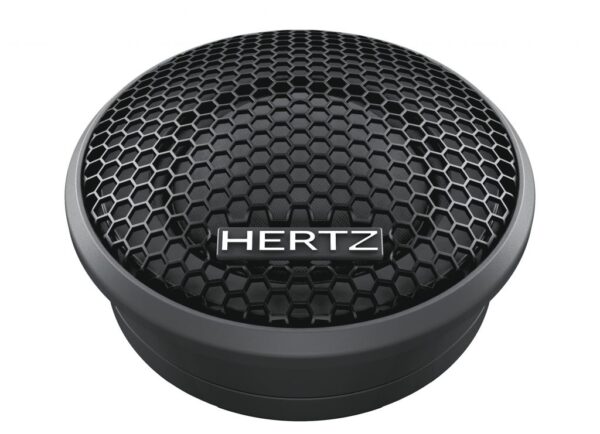

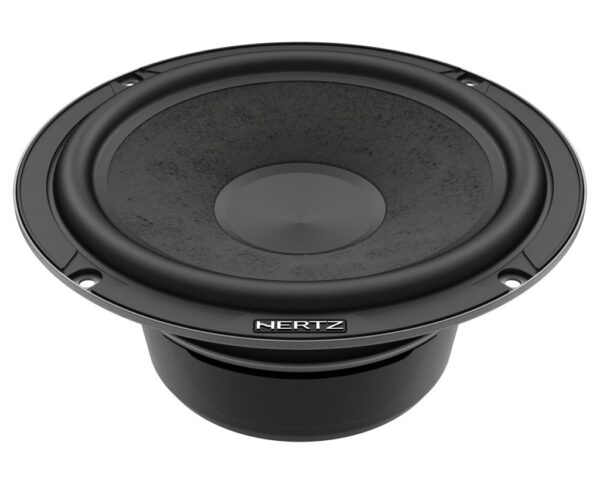

The Cento line expands with the C165 L woofer, featuring the use of non-pressed paper for the cone membrane, a choice that gives this component a natural sound, with solid and controlled low frequencies. The enhancement of the magnetic group together with the specific wide stroke voice coil allow the excursion of the woofer to be maximized maintaining utmost control even in the most demanding musical passages. The CK 165 L system consists of the C 165 L woofer, the C26 tweeter and the crossovers dedicated to the CCX 2W woofer and CCX 2T tweeter, made with selected components. The ultra-compact dimensions of the crossovers and the wire connections provide the specialist with a broader freedom during the installation.
| Component |
System |
| Size mm (in.) |
165 (6.5) |
| Power Handling – Continuous W |
100 |
| Power Handling – Peak W |
300 |
| Impedance Ohm |
4 |
| Tweeter diaphragm mm (in.) |
26 (1) |
| Woofer Voice Coil Ø mm (in.) |
25 (1) |
| Tweeter Voice Coil Ø mm (in.) |
20 (0.8) |
| Sensitivity dB SPL |
Tweeter 92 – Woofer 91 |
| Frequency Response Hz |
50 ÷ 22,5k |
| Crossover Cut off |
LP 6 dB / Oct. / 3,8 KHz – HP 12 dB / Oct. / 3,8 KHz |
| Crossover Type |
2 Way Passive Crossover |
| Weight of one component – Woofer |
0,973 (2.15) |
| Weight of one component – Tweeter kg (lb) |
0,037 (0.08) |
| Weight of one component – Crossover kg (lb) |
0,037 (0.08) |
Technical Specs
| D mm |
131,5 |
| Re Ohm |
3,2 |
| Fs Hz |
60 |
| Le mH |
0,23 |
| Vas I |
13,66 |
| Mms g |
14,2 |
| Cms mm/N |
0,52 |
| BL T*m |
4,9 |
| Qts |
0,60 |
| Qes |
0,70 |
| Qms |
3,8 |
| Spl dB |
91 |
Electro-acoustic Specs
