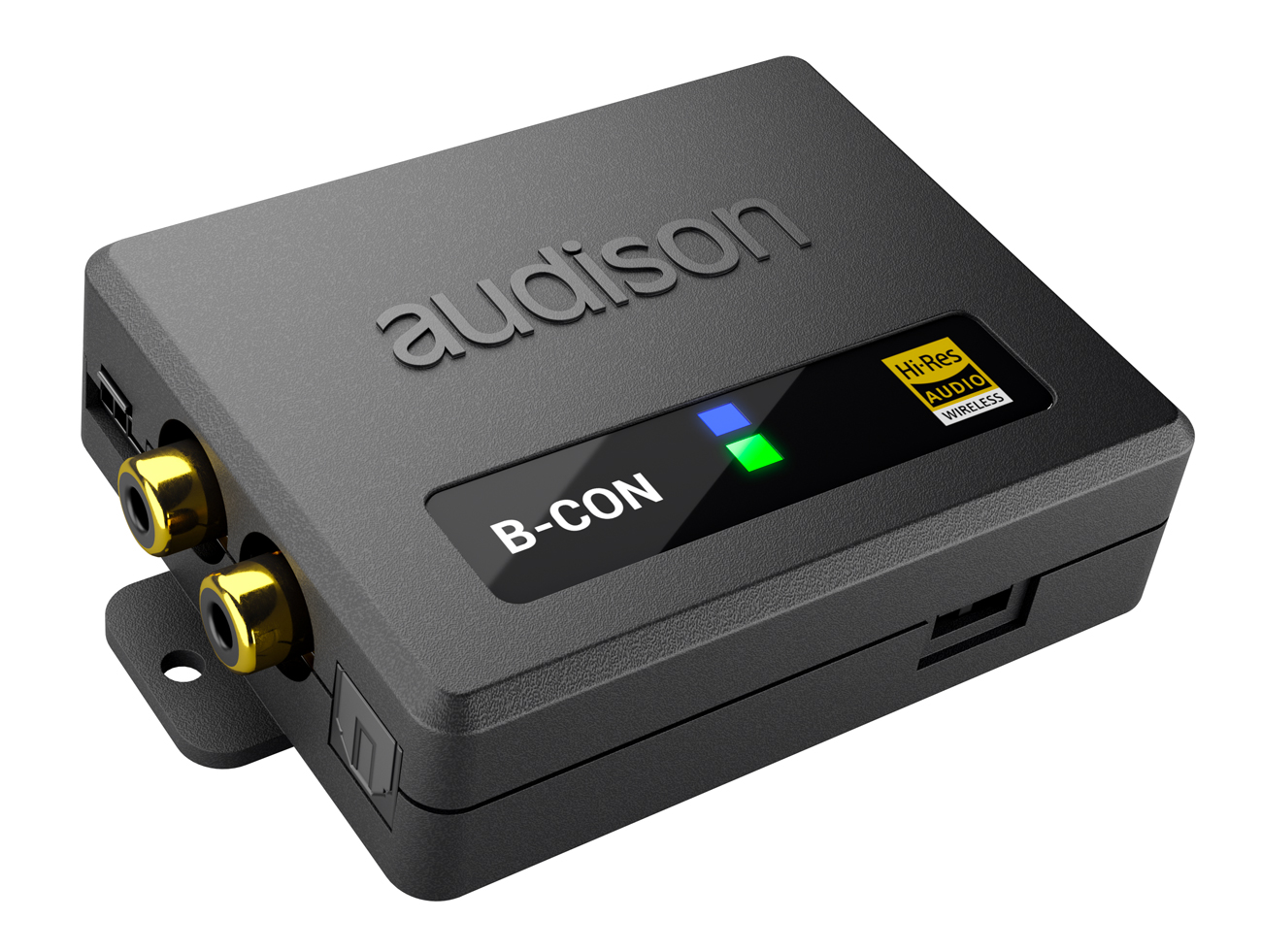

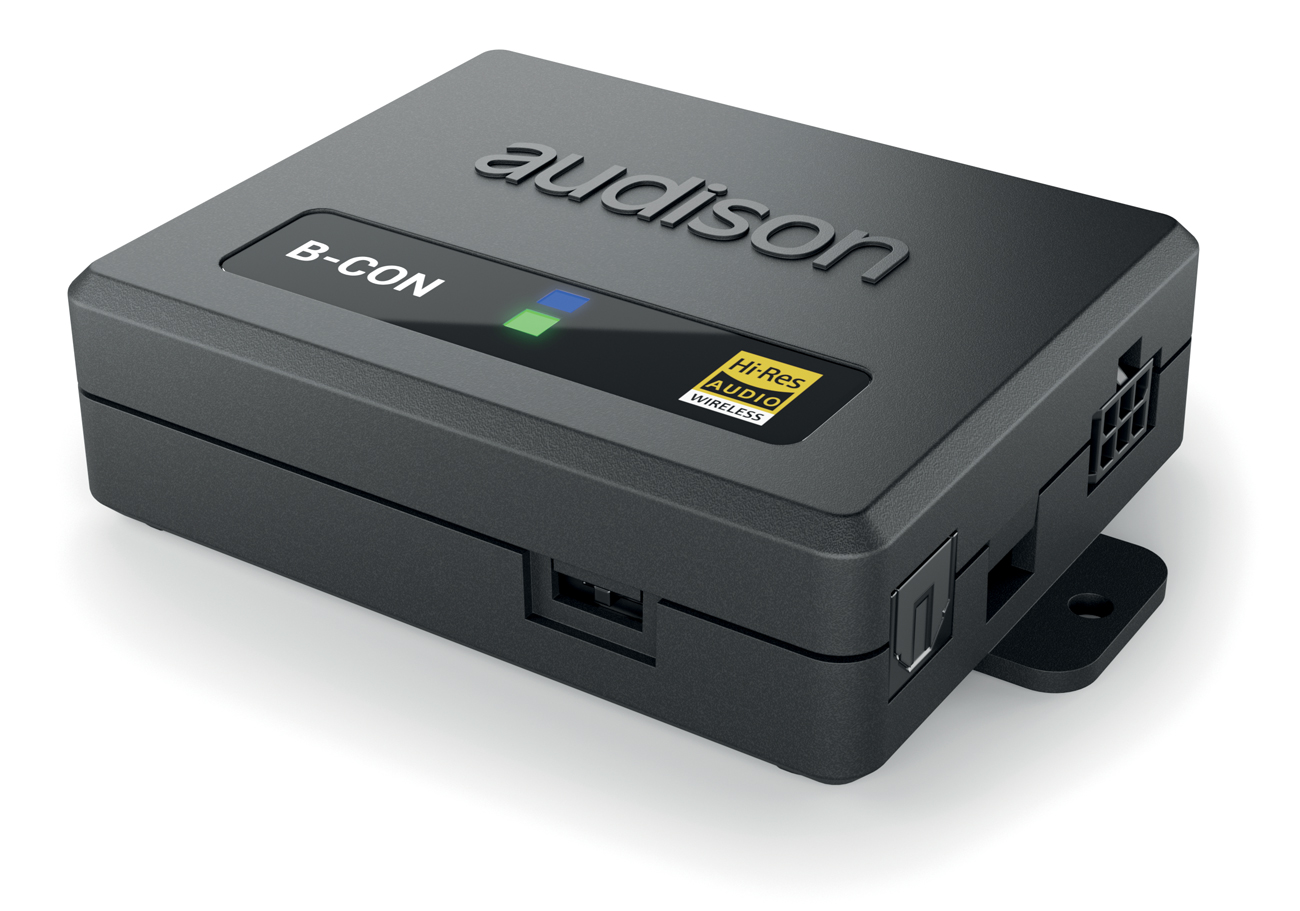

The Audison B-CON is the only Bluetooth 5.0® player designed for automotive use that has obtained the “Hi-Res audio wireless” certification from JAS (Japan Audio Society). B-CON is the ideal choice for streaming audio from a Hi-Res player (Fiio, Sony Walkman…) and from latest generation Android/Apple mobile devices.
B-CON is compatible with all audio formats and reaches maximum performance with uncompressed BT streaming (max 96kHz / 24bit, only with Android LDAC devices), both playing local files and with Apps that provide Hi-Res streaming.
Technical data
| POWER SUPPLY | |
| Voltage: | 6 ÷ 24 VDC |
| Idling current: | 70 mA @ 12 V |
| Remote IN voltage: | 3 ÷ 12 VDC (0.5 mA) |
| + 12 Remote IN voltage:/td> | 6 ÷ 12 VDC (70 mA) |
| USB Micro | 5 V (500 mA) |
| BLUETOOTH | |
| Type: | Bluetooth 5.0 + EDR |
| Codec: | Ldac, AAC, SBC |
| Profile: | Bluetooth A2DP 1.3, AVRCP 1.6 |
| INPUT | |
| Optical digital: | S/PDIF Optical (Max 24 bit/192KHz) |
| INPUT/ OUTPUT MANAGEMENT | |
| Digital IN delay switch: | 1 sec. |
| Power Connector: | AUX SEL wire, MASTER ENABLE wire |
| ADC: | Serial RS232, to manage Optical input and Absolute Volume control with other Audison devices that support this stand |
| Mode Switch: | Absolute volume ON/OFF, upgrade mode |
| OUTPUT | |
| Optical digital: | From Optical input: 24 bit 192 KHz From Streaming Bluetooth: 24 bit 96 kHz max. |
| Analog: | Band with (MAX) 20 ÷ 48K Hz Output Level 2 VRMS Distortion – THD @1 KHz, 1 VRMS 0.003% S/N RATIO (A weighted) 100 dBA |
| SIZE | |
| W x H x D mm / In. | 90 x 60,4 x 23 / 3.54 x 2.38 x 0.91 |
| To Audison Amplifiers | 0,054 / 0.119 |
