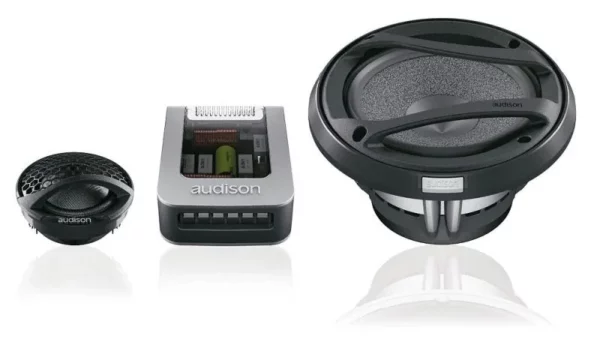

The prestigious Eisa Award European In-Car Speaker System 2010-2011 was bestowed to the AV K6 and AV K5 kits, which gather and comprise the most advanced technologies developed for the Audison components, at the service of music. The whole R & amped laboratory’s experience was poured into the design of these precious components, to create a synergy that can offer the highest quality sound in terms of bandwidth, dynamics of the musical message, naturalness and richness of details. The new reference for their own category.
TECHNICAL SPECS
| Woofer Size | 165 mm |
| Tweeter Size | 28 mm |
| Woofer Voice Coil Diameter | 30 mm |
| Tweeter Voice Coil Diameter | 28 mm |
| Magnet Size Woofer | 90 x 40 x 15 |
| Power Handling – Peak | 250 W |
| Power Handling – Continuous | 125 W |
| Sensitivity | 91 dB |
| Impedance | 4 Ohm |
| Frequency Response | 50 ÷ 22k |
| Crossover Woofer | Lo/Hi-Pass 2.5 kHz @ 12/12 dB/Oct. |
| Adjustment Tweeter Level | +2; 0; -2 dB |
| Woofer Cone Diameter | 130 mm |
| Xmax Woofer | 3 mm |
ELECTRIC-ACOUSTIC SPECS
| Re Woofer | 3.5 Ohm |
| Fs Woofer | 68 Hz |
| Le Woofer mH @ 1 kHz | 0.31 |
| Vas Woofer | 8.2 l |
| Mms Woofer | 16.1 g |
| Cms Woofer | 0.34 |
| Bxl Woofer | 5.5 |
| Qts Woofer | 0.74 |
| Qms Woofer | 7.84 |
| Spl Woofer | 91 dB |
GENERAL
| Weight Woofer | 1.2 kg |
| Weight Tweeter | 0.07 kg |
