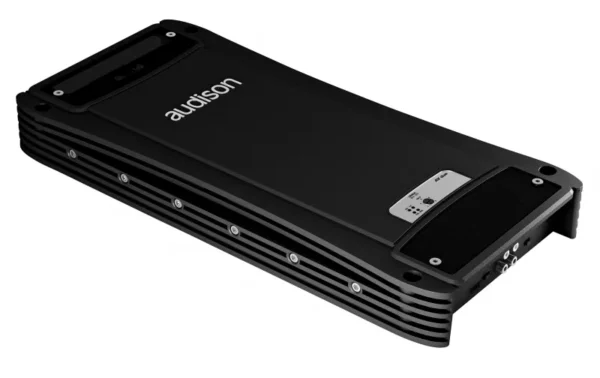

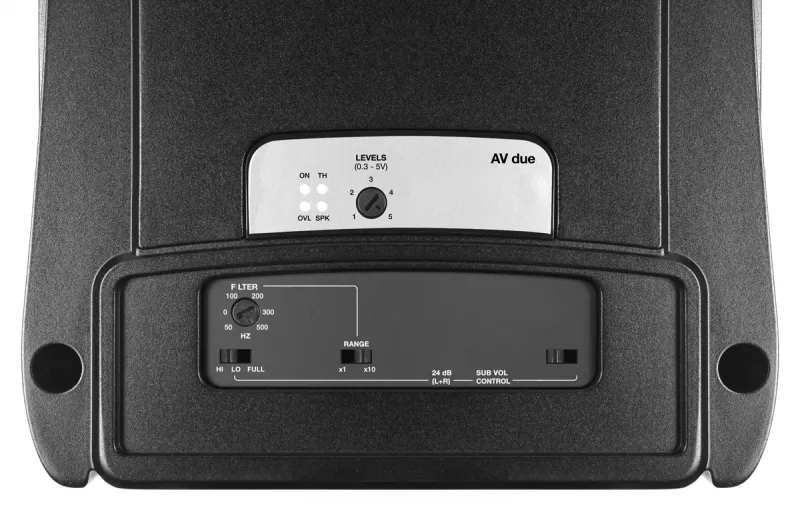

AV due is a powerful stereo amplifier with the power supply section and final stage designed to work also in mono and tri-mode, ensure very high output current, with powers up to 900 W (RMS). AMP (Amplifier Management Processor) constantly checks the operating status system and communicates with the user through 4 different colored LEDs, located on the top panel; ART (Automatic Remote Turn On-Off) allows automatic turn-on/off when a remote signal isnt available from the source.
AMPLIFIER TECH DATA
| Channels |
2 |
| Class |
AB-Class |
| Hi Level Input |
Yes |
| Low Level Input |
Yes |
| Digital Input |
Yes |
| Power supply voltage / fuse |
11 ÷ 15 VDC |
| Idling current |
1.7 A |
| Idling current when off |
0.02 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power |
65 A |
| Remote OUT |
12 VDC – 50mA |
| Remote IN |
7 ÷ 15 VDC – 1mA |
| ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) |
Selectable |
AMPLIFIER STAGE
| Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power |
0.04 % |
| Bandwidth A |
(-3 dB, 2 VRMS, 4 Ω): 4 ÷ 60k Hz |
| S/N ratio A |
(A weighted @ 1 V): 100 dBA |
| Damping factor A |
(1kHz, 4 Ohms): 120 |
| Input sensitivity Pre-In |
0.3 ÷ 5 V RMS |
| Pre In Impedance |
15k Ω |
| Input sensitivity Speaker-In |
1.4 ÷ 24 V RMS |
| Input impedance Speaker-In |
5k Ω |
| Total Power RMS |
900 W |
| Minimum load impedance |
2Ω |
| Output Power (RMS) @12.0 ÷ 14.4 VDC, 1% THD |
• 2 Ch: 260 W x 2 (4Ω)
• 2 Ch: 450 W x 2 (2Ω)
• 1 Ch: 900 W x 1 (4Ω) |
| Adjustable Crossover |
Yes |
CEA SPECIFICATIONS
| Output power @ 4Ω, 1% THD+N, 14.4 V |
Output power @ 4Ω, 1% THD+N, 14.4 V: 260 W x 2 Ch |
| SN ratio (ref. 1W output) |
SN ratio (ref. 1 W output): 80 dBA |

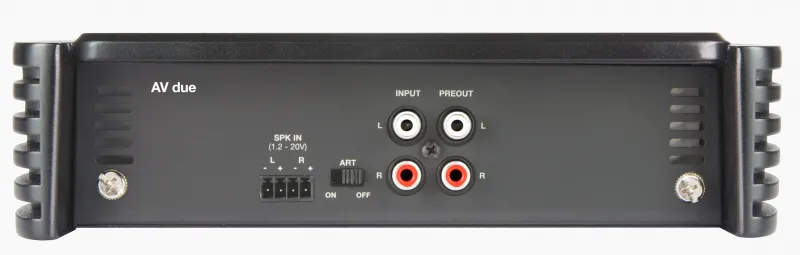

INPUTS
| Input Type |
Pre IN / Speakers IN |
| Filters Outputs |
Pre OUT Full Range |
| Filter Pass A |
(Full / Hi-Pass / Lo-Pass): 50 ÷ 5k Hz (2 range) @ 12 dB/Oct. |
| Filter Pass B |
(Lo-Pass 24 dB mono): 50 ÷ 500 Hz @ 24 dB/Oct. |
| Remote Sub Volume |
-50 ÷ 6) dB |
DIMENSIONS
| Dimension A |
470 mm |
| Dimension B |
399 mm |
| Dimension C |
220 mm |
| Dimension D |
198 mm |
| Dimension E |
58 mm |
