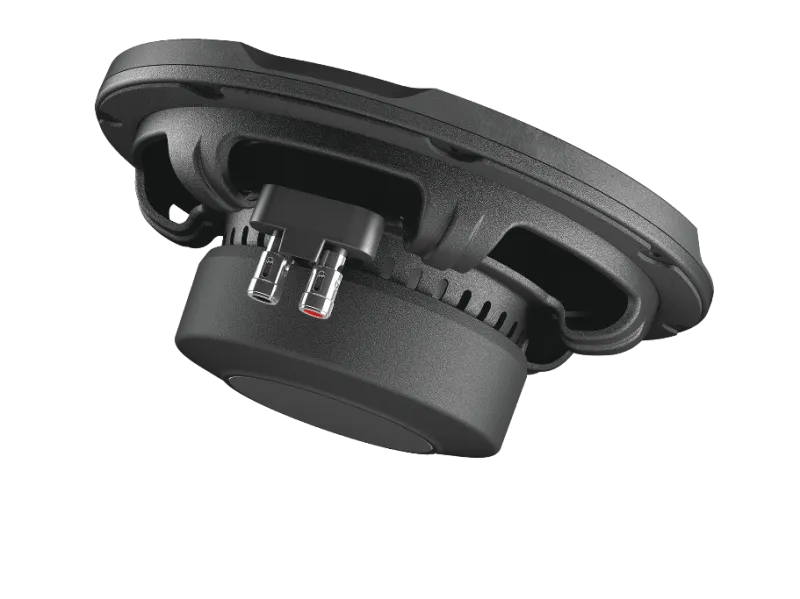

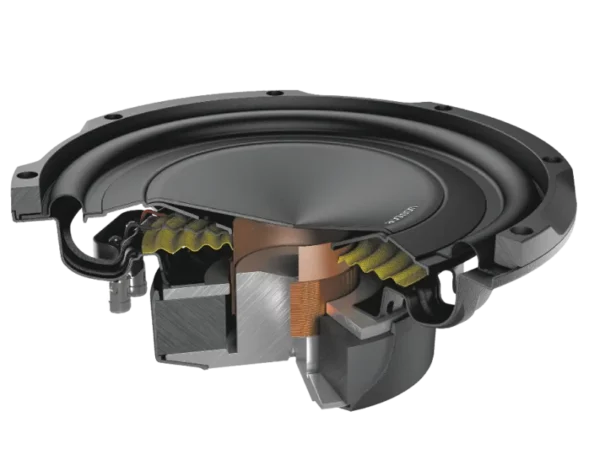

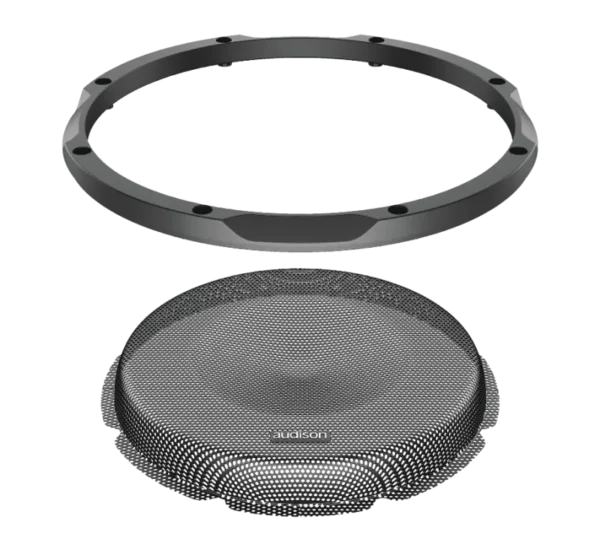

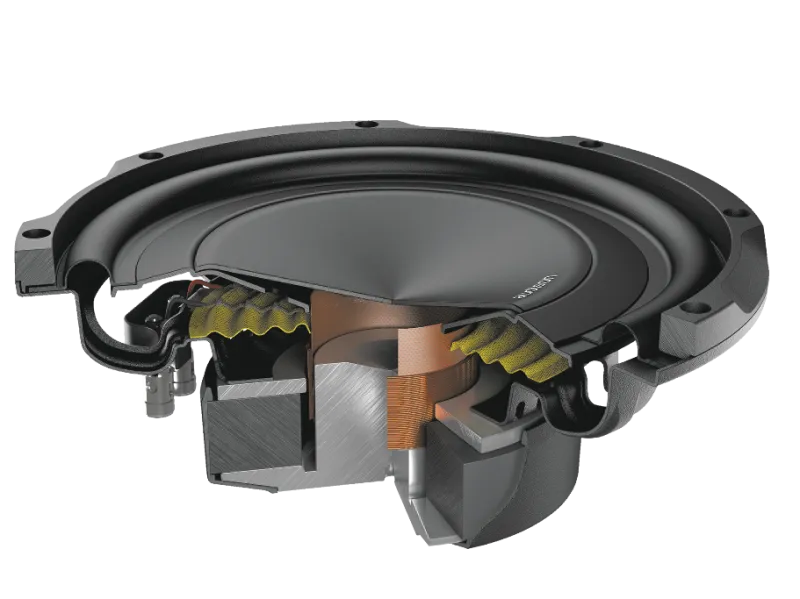

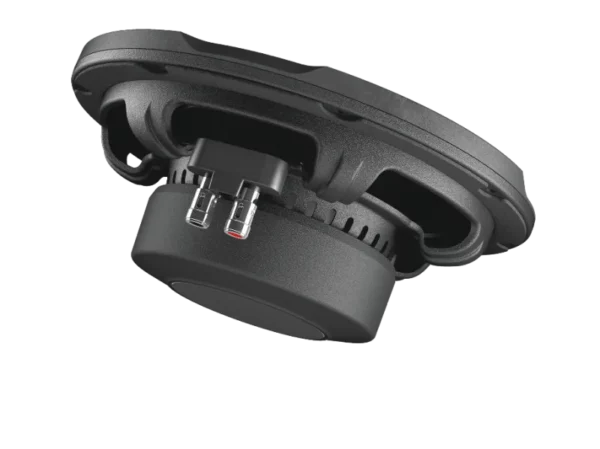

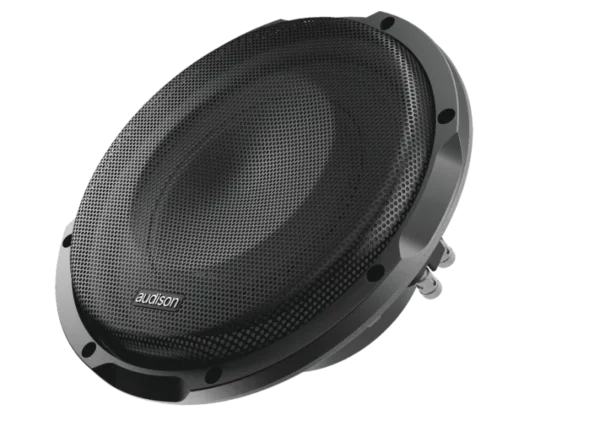

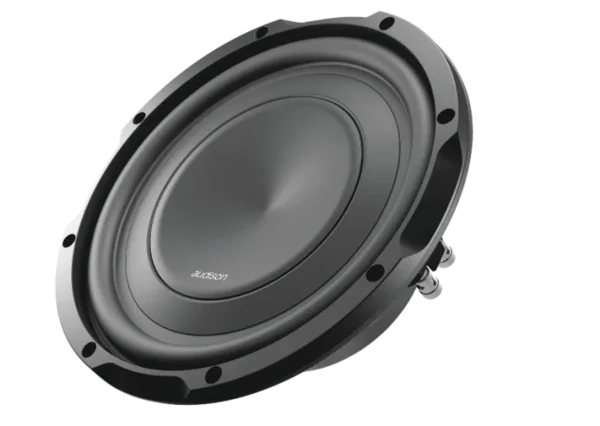

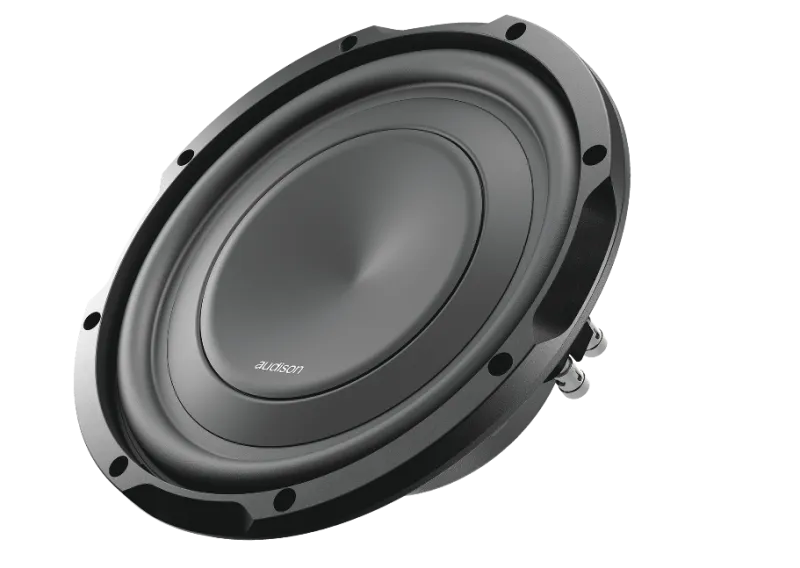

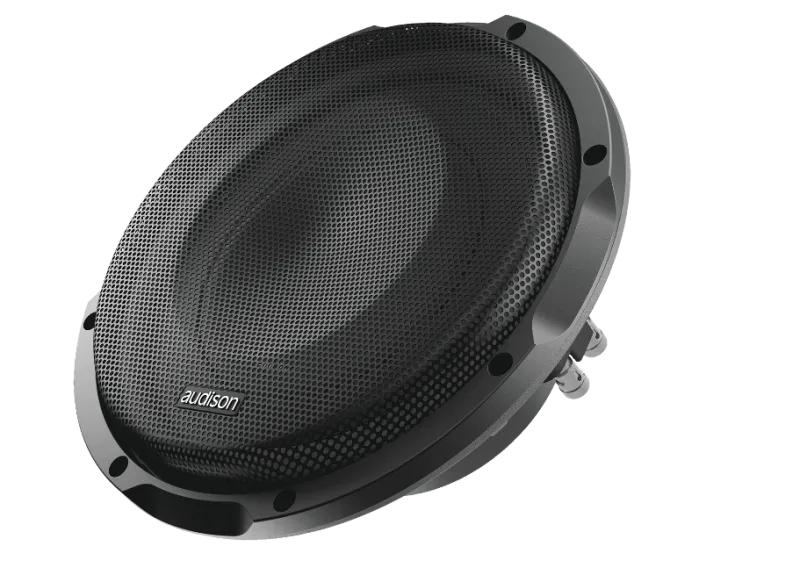

Prima compact subwoofer family expands with the introduction of the new 25 cm (10 in.) APS 10 S4S, optimized for enclosures with a reduced volume starting from 10 liters. The configuration of the single 4-ohm voice coil makes it ideal to be driven by the new AP F8.9-bit amplifier with built-in DSP that delivers an outstanding 260 W RMS with two channels bridged. Also interesting is the possibility to create custom enclosures with two APS 10 S4S driven by the AP 1D amplifier using the 540 W RMS delivered on the 2-ohm load resulting from the driver’s connection in parallel.
TECHNICAL SPECS
| Size |
250 mm |
| Power Handling – Peak |
800 W |
| Power Handling – Continuous |
400 W |
| Impedance |
4 Ohm |
| Magnet Material |
HIGH DENSITY FLUX FERRITE |
| Voice Coil Ø |
60 mm |
| Woofer Qes |
0,75 |
| Cone Material |
WATER REPELLENT PRESSED PAPER |
| Xmax |
12.6 mm |
| Xmech |
18 mm |
ELECTRIC-ACOUSTIC SPECS
| D |
220 mm |
| Driver Displacement Volume |
1.12 |
| Re |
3.7 Ohm |
| Fs |
28.5 Hz |
| Vas |
39.62 l |
| Mms |
160 g |
| CMS |
0.2 mm/N |
| BL |
12.9 T•m |
| Qms |
6.9 |
| Qts |
0.68 |
| Le Standard |
1.9 mH |
| Spl |
83.5 dB |
DIMENSIONS
| Dimension A |
270 mm |
| Dimension B |
233 mm |
| Dimension C |
105 mm |
| Dimension D |
88 mm |
