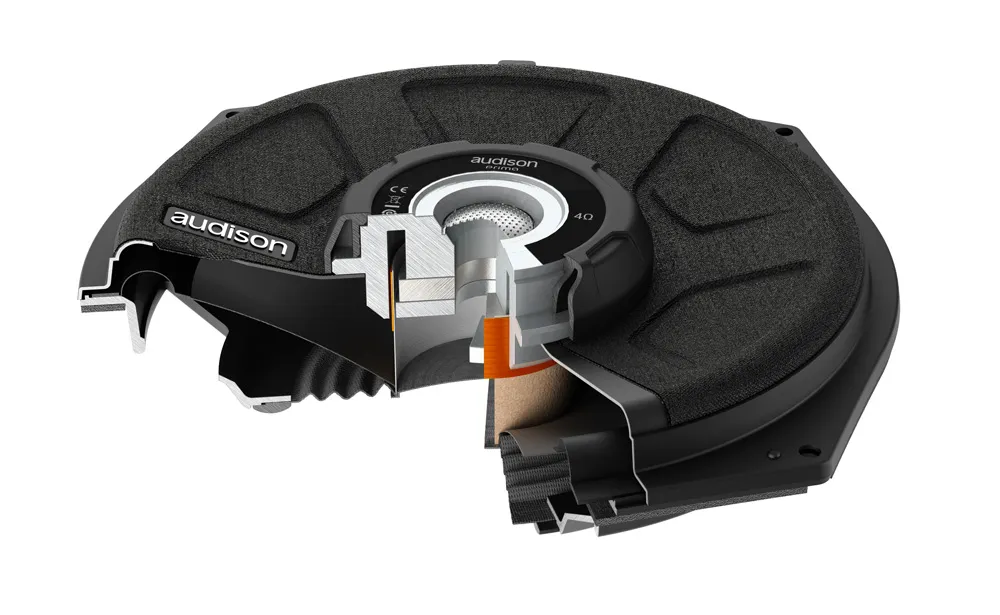

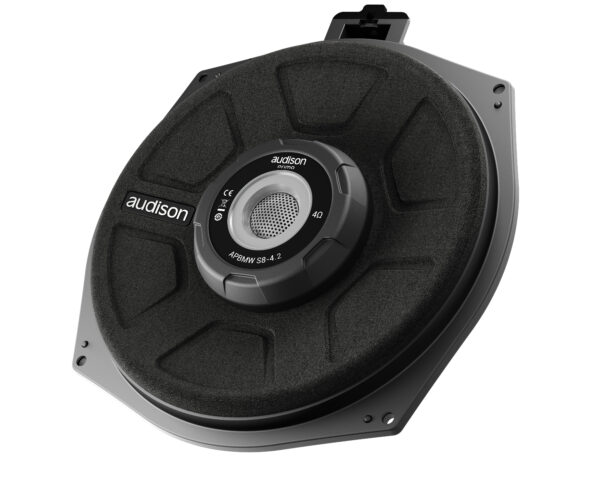

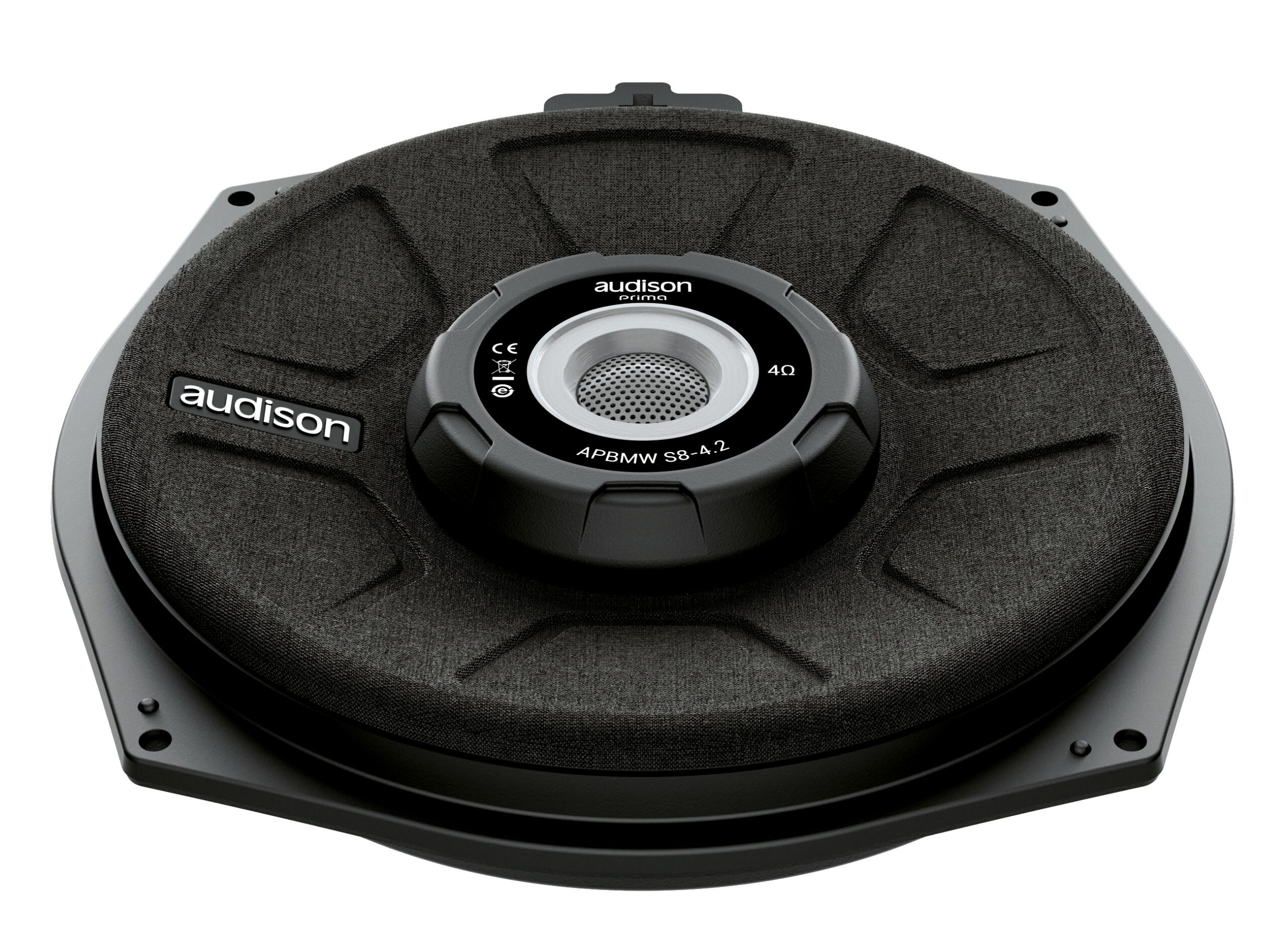

The 200 mm (8 in.) APBMW S subwoofers allow a direct replacement of the OEM speakers underneath the front seats, making the most of the factory acoustic load and generating deep and crisp low frequencies. The Neodymium magnet allows for greater power and control than ferrite while maintaining the depth of installation unaltered.
ECHNICAL SPECS
| Size |
200 mm |
| Power Handling – Peak |
300 W |
| Power Handling – Continuous |
150 W |
| Impedance |
4 Ohm |
| Frequency Response |
40-500 Hz |
| Magnet Material |
NEODYMIUM |
| Voice Coil Ø |
50 mm |
| Voice Coil Material |
COPPER |
| Woofer Qes |
0.96 |
| Cone Material |
PRESSED PAPER CONE |
| Chassis Material |
PLASTIC |
| Surround Material |
RUBBER |
| Xmax |
7 mm |
| Xmech |
10 mm |
ELECTRIC-ACOUSTIC SPECS
| D |
159 mm |
| Driver Displacement Volume |
1.2 |
| Re |
3.8 Ohm |
| Fs |
40 Hz |
| Vas |
21 l |
| Mms |
43 g |
| Cms |
0.41 mm/N |
| BL |
6.3 T•m |
| Qms |
2 |
| Qts |
0.65 |
| Diaphragm Area |
198.6 cm2 |
| Le Standard |
0.5 mH |
| Reference Efficiency |
0.13 |
| Spl |
88 dB |
DIMENSIONS
 |
| Dimension A |
217 mm |
| Dimension B |
239 mm |
| Dimension C |
191 mm |
| Dimension D |
55.2 mm |
| Dimension E |
32 mm |
| Dimension F |
229 |
| Dimension G |
5 mm |
