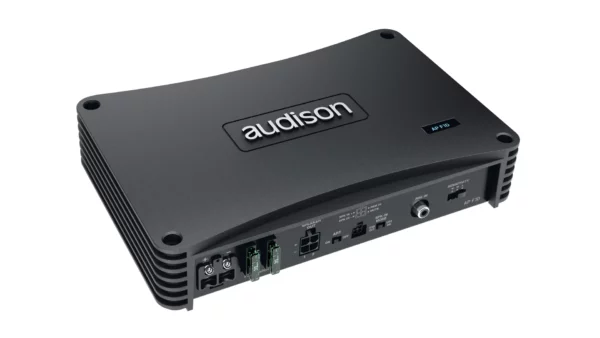

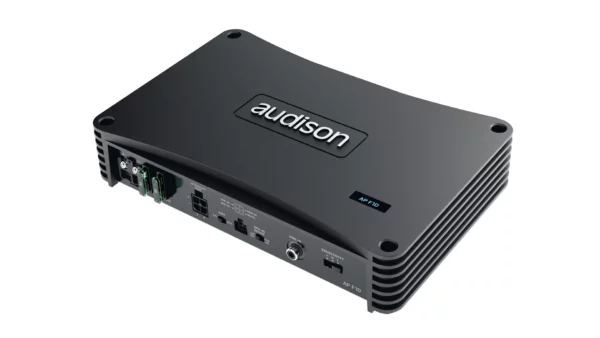

The AP F1D amplifier was designed to drive the most demanding subwoofer and is the ideal extension of the AP F8.9 bit. At 1 ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.
AMPLIFIER TECH DATA
| Channels |
1 |
| Class |
D-Class |
| Hi Level Input |
Yes |
| Low Level Input |
Yes |
| Digital Input |
No |
| Power supply voltage / fuse |
11 ÷ 15 VDC / 2 x 30A |
| Operating power supply voltage |
6.5 ÷ 17 VDC |
| Idling current |
1.3 A |
| Idling current when off |
0.05 mA |
| Consumption @ 14.4 VDC, 2Ω, Max Musical Power |
50 A |
| Remote IN |
6.5 ÷ 15 VDC (1 mA) |
| ART – Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) |
2 ÷ 7 VDC |
AMPLIFIER STAGE
| Distortion – THD @ 100 Hz, 4Ω, 70% Rated Power |
0.1% |
| Bandwidth A |
(-3 dB, 2 VRMS, 4 Ω): 10 Hz ÷ 500 Hz |
| S/N ratio A |
(A weighted @ 1 V): 110 dBA |
| Damping factor A |
(100 Hz, 4Ω, 2 VRMS): 140 |
| Input sensitivity Pre-In |
Selectable: 0.6 – 2.0 – 6.0 VRMS |
| Input sensitivity Speaker-In |
Selectable: 2.0 – 6.5 – 20 VRMS |
| Total Power RMS |
1000 W |
| Minimum load impedance |
1Ω |
| Output Power (RMS) @12.0 ÷ 14.4 VDC, 1% THD |
1Ch @ 4Ω 500 W x 1
1Ch @ 2Ω 800 W x 1
1Ch @ 1Ω 1000 W x 1 |
| Adjustable Crossover |
No |
CEA SPECIFICATIONS
| Output power @ 4Ω, 1% THD+N, 14.4 V |
500 W |
| SN ratio (ref. 1W output) |
81,5 dB |

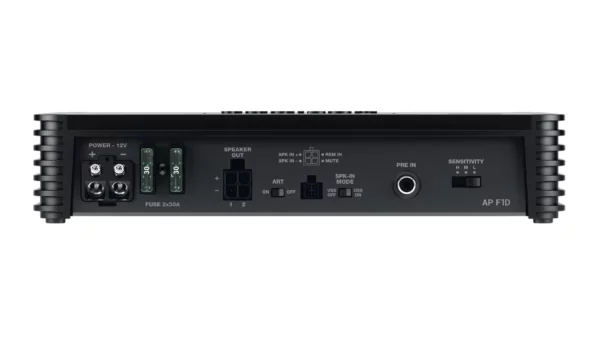

INPUTS
| Input Type |
Pre-In Inputs RCA |
| Filters Outputs |
Speaker-In Inputs wired |
| Filter Pass A |
Mute (Energy Saving control) wired (active to groung) |
OTHER
| Other Fucntions |
Ambient operating temperature range 0 °C to 55 °C (32 °F to 131 °F) |
| Weight |
1.92 kg |
