Audison Prima – AP 2 MV

$249.99

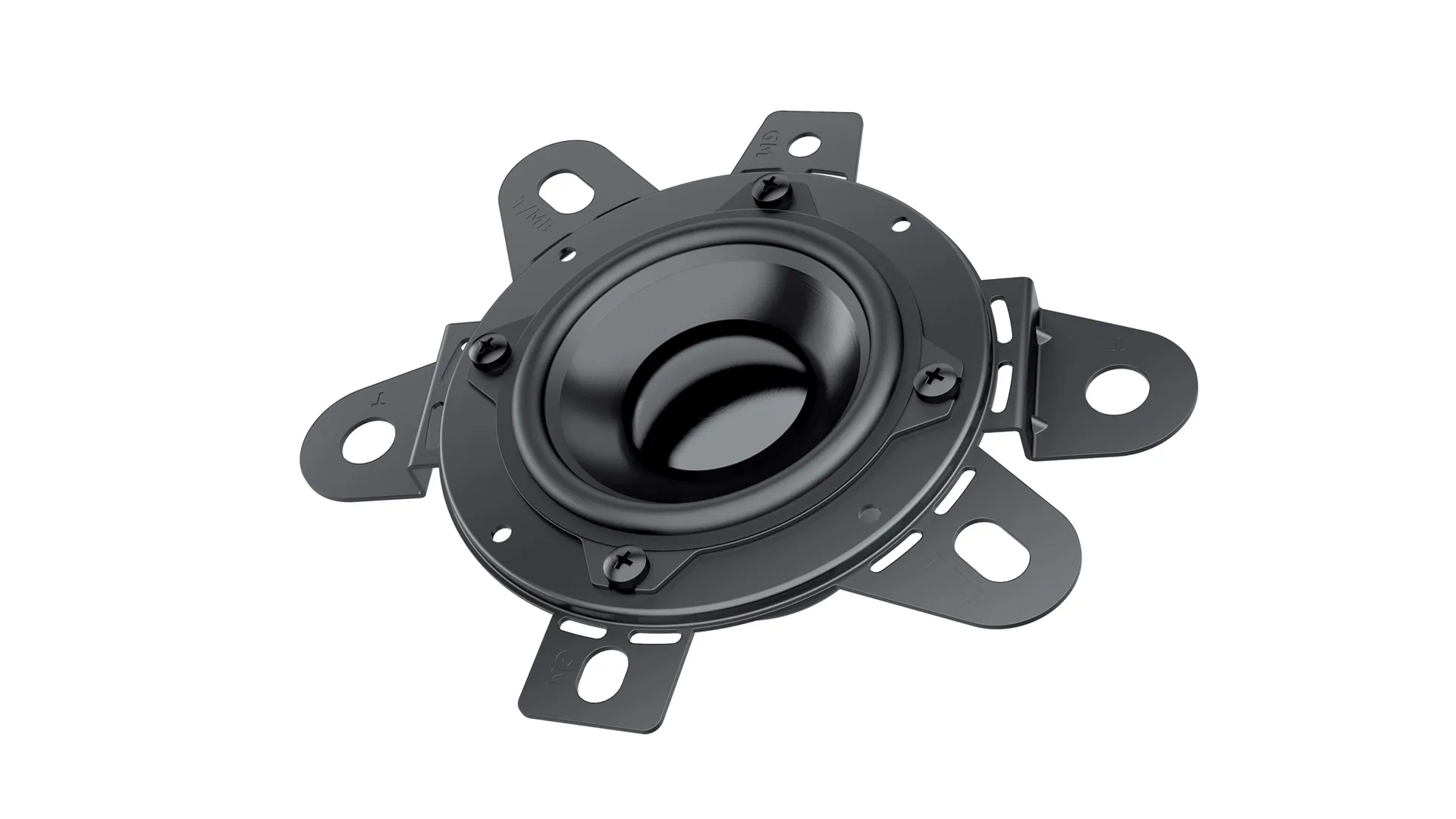

Prima AP 2 MW wide range car audio reproduces the entire range of mid and high frequencies and is perfect for cars of the GM, Ford and Toyota group with 50 mm (2 in.) OEM placements in the dashboard or A-pillar, where it is combined with an elliptical woofer in the car door. The provided adapter allows direct OEM replacement for many General Motors*, Toyota* and Mercedes* vehicles. The compact size and excellent electroacoustic parameters make it ideal also to be used as a midrange in 3-way systems, as a surround speaker or as a central channel, housed in OEM placements, where the space requirements would not allow the use of a speaker with a larger diameter.

TECHNICAL SPECS

Size 50 mm
Power Handling – Peak 50 W
Power Handling – Continuous 25 W
Impedance 4 Ohm
Frequency Response 150 ÷ 20k Hz Hz
Magnet Material NEODYMIUM
Voice Coil Ø 25 mm
Voice Coil Material CCAW
Woofer Qes 0,70
Xmax 2.5 mm

ELECTRIC-ACOUSTIC SPECS

D 49.1 mm
Re 3.5 Ohm
Fs 145 Hz
Vas 0.36 l
Mms 1.68 g
Cms 0.7 mm/N
BL 2.8 T•m
Qms 7.7
Qts 0.64
Diaphragm Area 49.1 cm2
Le Standard 0.07 mH
Spl 84 dB

GENERAL

Weight 0.15 kg

DIMENSIONS

Dimension A 77 mm
Dimension B 50.5 mm
Dimension C 36.8 mm
Dimension D 31 mm
