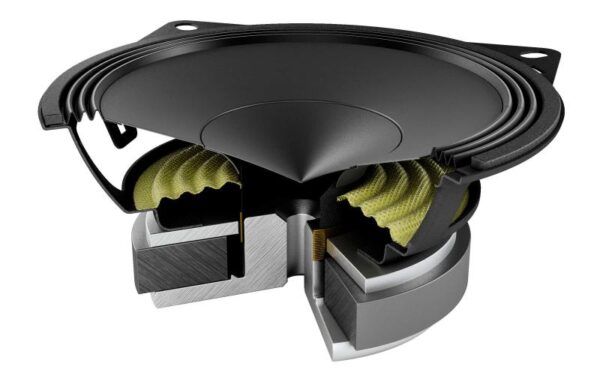

AP 5 feature a 32 mm pure copper voice coil, for high power handling and outstanding low frequency control. All the woofers don’t employ any filter, to maximize efficiency: the dome profile has been optimised with Klippel R&D Scan Vibrometer to obtain a calibrated mechanical low-pass cut-off frequency. The surround features the exclusive shallow “Triple Wave” profile, for maximum excursion linearity.
Tecnical Data
| Comp | Woofer |
| Size | 130 mm (5″) |
| Power Handling | 50 W Continuous Power 150 W Peak Power |
| Impedance | 4 Ω |
| Frequency Response | 70 ÷ 5k Hz |
| Sensitivity | 93 dB/Spl |
| Magnet | High density flux ferrite |
| Dome | Water-repellent treated paper cone |
